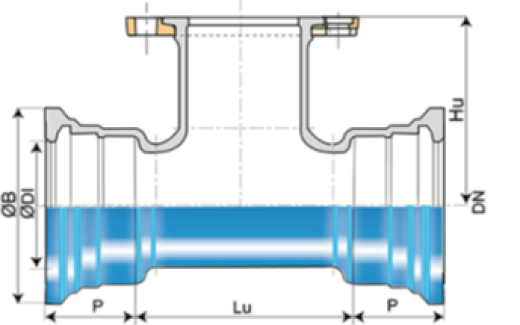

| DN (mm) | Ødn (mm) | Lu (mm) | Hu (mm) | P (mm) | ØDI (mm) | ØB (mm) | Mass (kg) |
|---|---|---|---|---|---|---|---|
| 100 | 100 | 210 | 180 | 88 | 121.4 | 187.5 | 16,400 |
| 150 | 100 | 190 | 215 | 94 | 173.4 | 241 | 21,400 |
| 150 | 150 | 305 | 220 | 94 | 173.4 | 241 | 29,500 |
| 200 | 100 | 195 | 245 | 100 | 225.5 | 294 | 29,100 |
| 200 | 150 | 250 | 245 | 100 | 225.5 | 294 | 34,900 |
| 200 | 200 | 360 | 260 | 100 | 225.5 | 294 | 44,600 |
| 250 | 100 | 234 | 270 | 105 | 277.3 | 351 | 32,800 |
| 250 | 150 | 251 | 280 | 105 | 277.3 | 351 | 39,000 |
| 250 | 200 | 344 | 290 | 105 | 277.3 | 351 | 47,200 |
| 250 | 250 | 404 | 300 | 105 | 277.3 | 351 | 69,100 |
| 300 | 100 | 237 | 300 | 110 | 329.3 | 408.3 | 58,100 |
| 300 | 150 | 347 | 310 | 110 | 329.3 | 408.3 | 48,800 |
| 300 | 200 | 347 | 320 | 110 | 329.3 | 408.3 | 58,500 |
| 300 | 250 | 467 | 305 | 110 | 329.3 | 408.3 | 67,900 |
| 300 | 300 | 467 | 340 | 110 | 329.3 | 408.3 | 78,600 |
