| DN | 500 |
|---|---|
| Type | Sewer inspection manhole base |
| Fields of use | Sewer networks; connection chamber |
| Material | Polyethylene |
| Characteristics |
Total height ~450 mm Useful height ~270 mm Length without connections ~600 mm Length with connections ~820 mm Connection inline IN/OUT with socket, from Ø110 up to Ø160 mm |
| Optional components |

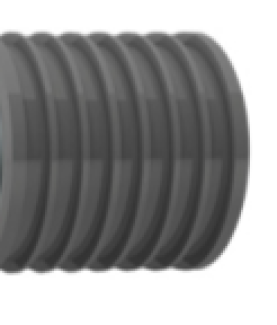

Corrugated column D630, double-wall Fixing gasket for the column Cover: cast iron or composite (EN 124) |
| Advantages |
Easy to install Increased mechanical strength, reinforced chamber body Reduced costs; no masonry construction required Can be manufactured to any desired height and pipe diameter, on request |
| DN | 600 |
|---|---|
| Type | Sewer inspection manhole base |
| Fields of use | Sewer networks; connection chamber |
| Material | Polyethylene |
| Characteristics |
Construction variants: Line (1 IN / 1 OUT) — socket connection X — 3 IN / 1 OUT at 90° — socket connection Y — 3 IN / 1 OUT at 45° — socket connection X — 3 IN / 1 OUT at 90° — gasket connection Total height ~610 mm / 510 mm (Line / gasket-connection variants) Connection: |
| Optional components |
Corrugated column D630, double-wall Fixing gasket for the column Cover: cast iron or composite (EN 124) |
