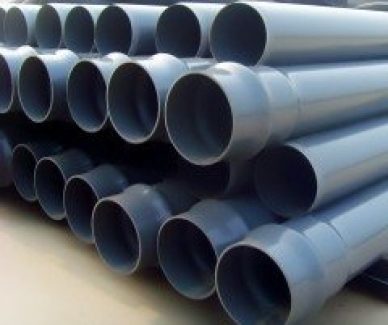

PVC-U Potable Water

Pipes in accordance with ΕΝ 1452-2.
Pipe length is 6m

morepipes
External Diameter DN 6 ATM 10 ATM 12,5 ATM 16 ATM
Wall Thickness Weight Wall Thickness Weight Wall Thickness Weight Wall Thickness Weight
mm Kg/m mm Kg/m mm Kg/m mm Kg/m
50 1.5 0.360 2.4 0.560 3.0 0.680 3.7 0.82
63 1.9 0.562 3.0 0.854 3.8 1.066 4.7 1.29
75 2.2 0.782 3.6 1.22 4.5 1.501 5.6 1.82
90 2.7 1.13 4.3 1.75 5.4 2.137 6.7 2.61
110 2.7 1.39 4.2 2.09 5.3 2.61 6.6 3.19
125 3.1 1.79 4.8 2.70 6.0 3.34 7.4 4.05
140 3.5 2.27 5.4 3.40 6.7 4.18 8.3 5.09
160 4.0 2.94 6.2 4.45 7.7 5.47 9.5 6.63
180 4.4 3.65 6.9 5.57 8.6 6.88 10.7 8.44
200 4.9 4.48 7.7 6.89 9.6 8.51 11.9 10.39
225 5.5 5.66 8.6 8.69 10.8 10.80 13.4 13.12
250 6.2 7.09 9.6 10.75 11.9 13.20 14.8 16.09
280 6.9 8.79 10.7 13.39 13.4 16.60 16.8 20.42
315 7.7 11.10 12.1 17.02 15.0 20.90 18.7 25.58
355 8.7 14.04 13.6 21.53 16.9 26.50 21.1 32.52
400 9.8 17.76 15.3 27.26 19.1 33.70 23.7 41.19
450 11 22.45 17.2 34.5 21.5 42.70 26.7 52.2
500 12.3 27.85 19.1 42.46 23.9 52.60 29.7 64.51
560 13.7 34.76 21.4 53.26 26.7 65.80 – –
630 15.4 43.90 67.49 67.49 – – – –
