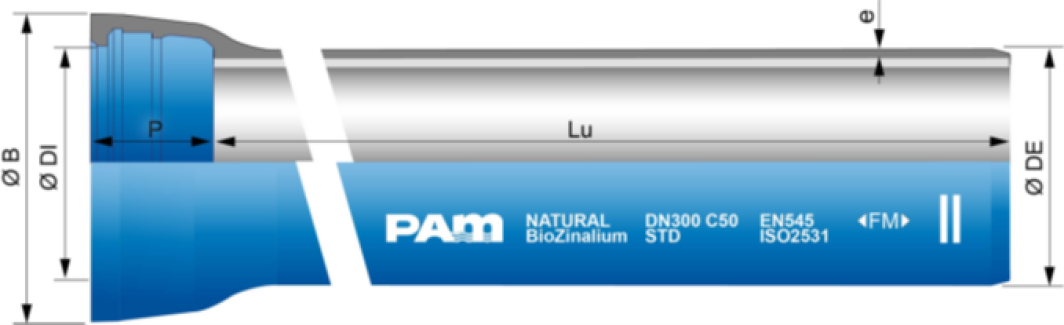

| DN | Lu (m) | NV (bar) | V (bar) | ØDE (mm) | ØDI (mm) | P (mm) | ØB (mm) | Mass (kg/m) |
|---|---|---|---|---|---|---|---|---|
| 100 | 6,000 | 27.5 | 18 | 118 | 121.4 | 94.5 | 166.9 | 17,103 |
| 150 | 6,000 | 27.5 | 19 | 170 | 173.4 | 100.5 | 220.8 | 25,538 |
| 200 | 6,000 | 30.0 | 19 | 222 | 225.2 | 106.5 | 275.1 | 33,366 |
| 250 | 6,000 | 27.5 | 16 | 274 | 276.8 | 105.5 | 328.6 | 47,318 |
| 300 | 6,000 | 27.5 | 14 | 326 | 328.8 | 107.5 | 385.3 | 63,583 |
| 400 | 6,000 | 21.25 | 13 | 429 | 431.9 | 112.5 | 494.6 | 91,499 |
