| Type | Sewer inspection chamber |
|---|---|
| Fields of use | Sewer networks; connection chamber |
| Material | Polyethylene, or on request polypropylene |
| Standard | SR EN 13598-1:2020 SR EN 13598-2:2020 |
| Characteristics |
Height 1000–1500 mm Length ~420 mm without connections; ~640 mm with connections Nominal column diameter Ø315 mm Connection inline IN/OUT with socket: Ø110, Ø125, Ø160 mm Optional side connection with gasket: Ø110, Ø125, Ø160 mm |

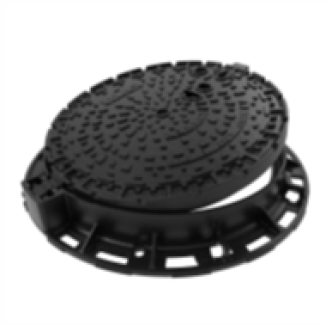

| Optional components | Cover: PE DN400 Cast-iron or composite cover (EN 124) |
| Advantages |
Easy to install Increased mechanical strength; reinforced chamber body Reduced costs; no masonry required Can be cut to any desired height Side connection possible |
