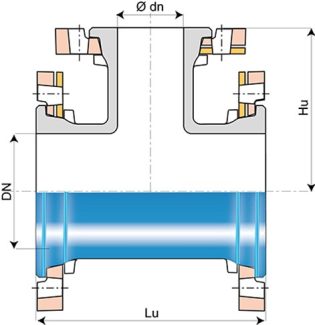

| DN | Ø dn | Lu | Hu |
|---|---|---|---|
| mm | mm | mm | mm |
| 40 | 40 | 280 | 140 |
| 50 | 40 | 300 | 140 |
| 50 | 50 | 300 | 150 |
| 60 | 40 | 320 | 140 |
| 60 | 50 | 320 | 150 |
| 60 | 60 | 320 | 160 |
| 65 | 40 | 310 | 140 |
| 65 | 50 | 320 | 150 |
| 65 | 60 | 320 | 160 |
| 65 | 65 | 320 | 160 |
| 80 | 40 | 330 | 140 |
| 80 | 50 | 330 | 150 |
| 80 | 60 | 330 | 160 |
| 80 | 80 | 330 | 165 |
| 100 | 40 | 360 | 150 |
| 100 | 50 | 360 | 160 |
| 100 | 60 | 360 | 170 |
| 100 | 65 | 360 | 170 |
| 100 | 80 | 360 | 175 |
| 100 | 100 | 360 | 180 |
| 125 | 40 | 400 | 165 |
| 125 | 50 | 400 | 175 |
| 125 | 60 | 400 | 185 |
| 125 | 65 | 400 | 185 |
| 125 | 80 | 400 | 190 |
| 125 | 100 | 400 | 195 |
| 125 | 125 | 400 | 200 |
| 150 | 40 | 440 | 175 |
| 150 | 50 | 440 | 185 |
| 150 | 60 | 440 | 195 |
| 150 | 65 | 440 | 195 |
| 150 | 80 | 440 | 205 |
| 150 | 100 | 440 | 210 |
| 150 | 125 | 440 | 210 |
| 150 | 150 | 440 | 220 |
| 200 | 40 | 520 | 200 |
| 200 | 50 | 520 | 210 |
| 200 | 60 | 520 | 220 |
| 200 | 65 | 520 | 220 |
| 200 | 80 | 520 | 235 |
| 200 | 100 | 520 | 240 |
| 200 | 125 | 520 | 240 |
| 200 | 150 | 520 | 250 |
| 200 | 200 | 520 | 260 |
| 250 | 60 | 385 | 260 |
| 250 | 80 | 405 | 265 |
| DN | Ø dn | Lu | Hu |
|---|---|---|---|
| mm | mm | mm | mm |
| 250 | 100 | 425 | 270 |
| 250 | 150 | 485 | 280 |
| 250 | 200 | 540 | 290 |
| 250 | 250 | 600 | 300 |
| 300 | 60 | 405 | 290 |
| 300 | 80 | 425 | 295 |
| 300 | 100 | 450 | 300 |
| 300 | 150 | 505 | 310 |
| 300 | 200 | 565 | 320 |
| 300 | 250 | 620 | 330 |
| 300 | 300 | 680 | 340 |
| 350 | 60 | 430 | 320 |
| 350 | 80 | 445 | 325 |
| 350 | 100 | 470 | 330 |
| 350 | 150 | 530 | 340 |
| 350 | 200 | 585 | 350 |
| 350 | 250 | 645 | 360 |
| 350 | 300 | 700 | 370 |
| 350 | 350 | 760 | 380 |
| 400 | 80 | 470 | 355 |
| 400 | 100 | 490 | 360 |
| 400 | 150 | 550 | 370 |
| 400 | 200 | 610 | 380 |
| 400 | 250 | 665 | 390 |
| 400 | 300 | 725 | 400 |
| 400 | 400 | 840 | 420 |
| 450 | 150 | 570 | 400 |
| 450 | 300 | 730 | 430 |
| 450 | 400 | 906 | 450 |
| 450 | 450 | 920 | 460 |
| 500 | 100 | 535 | 420 |
| 500 | 150 | 590 | 430 |
| 500 | 200 | 650 | 440 |
| 500 | 250 | 710 | 450 |
| 500 | 300 | 770 | 460 |
| 500 | 400 | 885 | 480 |
| 500 | 500 | 975 | 475 |
| 600 | 100 | 580 | 480 |
| 600 | 150 | 640 | 490 |
| 600 | 200 | 700 | 500 |
| 600 | 300 | 815 | 520 |
| 600 | 400 | 930 | 540 |
| 600 | 500 | 1100 | 550 |
| 600 | 600 | 1075 | 525 |
