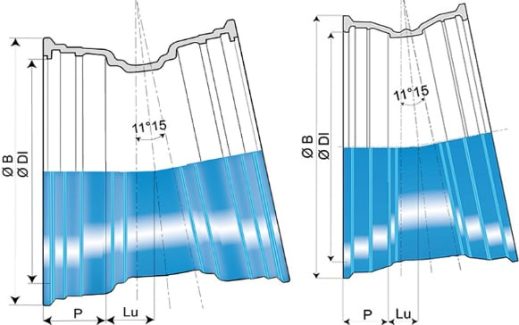

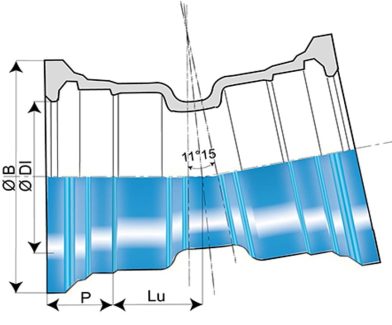

| Angle | DN | Lu | P | Ø DI | Ø B | Mass |
|---|---|---|---|---|---|---|
| degree | mm | mm | mm | mm | mm | kg |
| 11°15 | 60 | 35.0 | 82.0 | 80.2 | 143.5 | 5.1 |
| 11°15 | 80 | 40.0 | 85.0 | 101.4 | 167.5 | 6.5 |
| 11°15 | 100 | 40.0 | 88.0 | 121.4 | 187.5 | 7.9 |
| 11°15 | 125 | 45.0 | 91.0 | 147.4 | 214.5 | 10.3 |
| 11°15 | 150 | 46.0 | 94.0 | 173.4 | 241.0 | 12.6 |
| 11°15 | 200 | 52.0 | 100.0 | 225.5 | 294.0 | 19.2 |
| 11°15 | 250 | 55.0 | 105.0 | 277.3 | 351.0 | 30.5 |
| 11°15 | 300 | 50.0 | 110.0 | 329.3 | 408.3 | 39.7 |
| 11°15 | 350 | 50.0 | 110.0 | 381.9 | 464.3 | 40.6 |
| 11°15 | 400 | 49.0 | 112.0 | 432.9 | 515.3 | 50.7 |
| 11°15 | 450 | 67.0 | 115.5 | 483.5 | 573.0 | 79.6 |
| 11°15 | 500 | 60.0 | 117.5 | 536.0 | 628.0 | 74.7 |
| 11°15 | 600 | 70.0 | 132.5 | 639.1 | 737.0 | 106.3 |
| 11°15 | 700 | 87.0 | 150.0 | 742.2 | 863.0 | 197.0 |
| 11°15 | 800 | 90.5 | 160.0 | 846.3 | 974.0 | 253.0 |
| 11°15 | 900 | 102.5 | 175.0 | 949.4 | 1082.0 | 325.6 |
| 11°15 | 1000 | 117.5 | 185.0 | 1052.5 | 1191.0 | 414.4 |
| 11°15 | 1100 | 140.0 | 190.0 | 1155.0 | 1300.0 | 490.0 |
| 11°15 | 1200 | 137.5 | 195.0 | 1263.0 | 1412.5 | 478.0 |
| 11°15 | 1400 | 143.0 | 255.0 | 1467.0 | 1600.0 | 884.0 |
| 11°15 | 1500 | 193.0 | 280.0 | 1570.0 | 1742.0 | 1143.0 |
| 11°15 | 1600 | 153.0 | 275.0 | 1673.0 | 1820.0 | 1173.0 |
| 11°15 | 1800 | 200.0 | 258.0 | 1881.7 | 2038.2 | 1542.0 |
| 11°15 | 2000 | 200.0 | 290.0 | 2089.0 | 2269.0 | 2151.0 |
