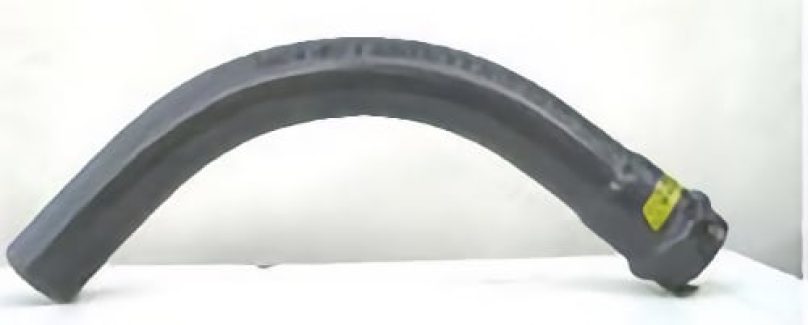

Bend PVC 16bar


Diameter Radius 11° 22° 30° 45° 60° 90°
L (cm) Weight (kg) L (cm) Weight (kg) L (cm) Weight (kg) L (cm) Weight (kg) L (cm) Weight (kg) L (cm) Weight (kg)
50 0.19 0.22 0.37 0.24 0.40 0.26 0.44 0.29 0.49 0.31 0.53 0.34 0.57
63 0.20 0.24 0.65 0.26 0.71 0.29 0.77 0.31 0.84 0.34 0.90 0.36 0.97
75 0.24 0.29 1.08 0.30 1.13 0.32 1.19 0.35 1.31 0.39 1.44 0.44 1.62
90 0.29 0.32 1.72 0.35 1.88 0.36 1.96 0.38 2.06 0.44 2.35 0.49 2.61
110 0.33 0.34 2.73 0.36 2.93 0.39 3.12 0.42 3.35 0.49 3.90 0.54 4.29
125 0.37 0.36 3.76 0.38 3.96 0.42 4.31 0.45 4.66 0.53 5.41 0.60 6.16
140 0.42 0.39 5.02 0.41 5.33 0.44 5.64 0.49 6.27 0.56 7.21 0.66 8.46
160 0.48 0.43 7.35 0.45 7.76 0.48 8.17 0.53 8.99 0.58 9.80 0.73 12.26
200 0.64 0.53 14.08 0.56 14.72 0.58 15.36 0.67 17.54 0.73 19.20 0.90 23.42
225 0.64 0.56 18.52 0.58 19.32 0.66 21.74 0.73 24.15 0.81 26.57 0.98 32.20
250 0.64 0.56 23.88 0.61 25.87 0.68 28.86 0.76 31.84 0.83 34.83 0.96 39.80
280 0.70 0.65 33.62 0.70 36.11 0.75 38.60 0.80 41.09 1.02 52.29 1.12 57.27
315 0.70 0.65 44.10 0.73 48.83 0.78 51.98 0.83 55.13 1.05 69.30 1.18 77.18
