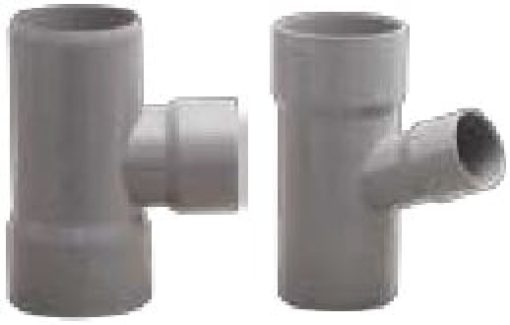

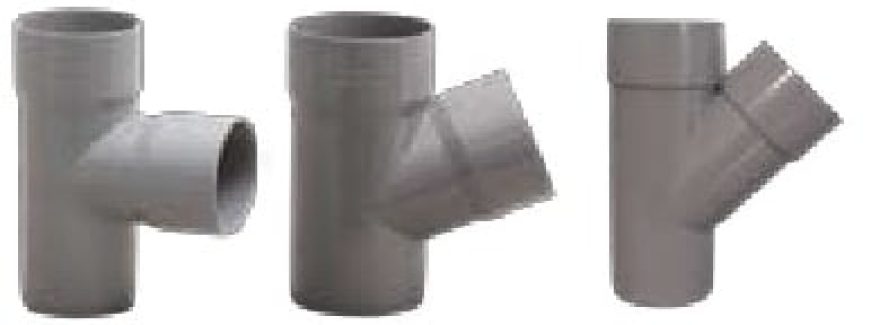

Tee

EN1329-1

Picture1-71
DN 45° 67° 90°
32 – x x
40 – x x
50 – x x
63 – x x
75 x x x
100 x x x
125 – x x
140 – x x
160 – x x
200 – x x
Reduced
DN 67° 90°
75/50 x –
100/50 x x
100/63 x x
100/75 x x
125/100 x x
