Tee PROCESS FM

Picture1-86

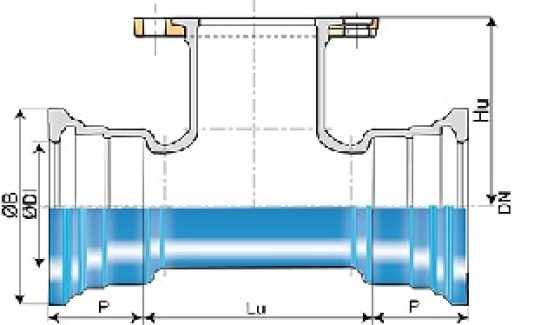

Tee PROCESS FM with 2 sockets STANDARD and Rotatable Flange branch PN16
DN
mm		 Ødn
mm		 Lu
mm		 Hu
mm		 P
mm		 ØDI
mm		 ØB
mm		 Mass
kg
100 100 210 180 88 121.4 187.5 16,400
150 100 190 215 94 173.4 241 21,400
150 150 305 220 94 173.4 241 29,500
200 100 195 245 100 225.5 294 29,100
200 150 250 245 100 225.5 294 34,900
200 200 360 260 100 225.5 294 44,600
250 100 234 270 105 277.3 351 32,800
250 150 251 280 105 277.3 351 39,000
250 200 344 290 105 277.3 351 47,200
250 250 404 300 105 277.3 351 69,100
300 100 237 300 110 329.3 408.3 58,100
300 150 347 310 110 329.3 408.3 48,800
300 200 347 320 110 329.3 408.3 58,500
300 250 467 305 110 329.3 408.3 67,900
300 300 467 340 110 329.3 408.3 78,600

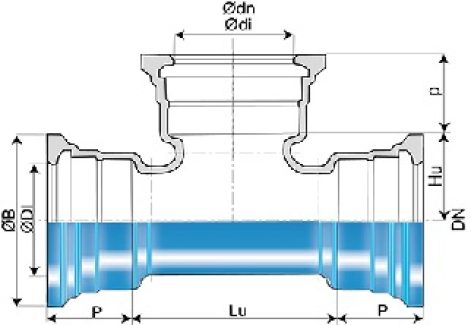

Tee PROCESS FM with 3 sockets STANDARD
DN
mm		 Ødn
mm		 Lu
mm		 P
mm		 ØDI
mm		 ØB
mm		 Hu
mm		 p
mm		 Ødi
mm		 Mass
kg
100 100 210 88 121.4 187.5 105 88 121.4 14,900
150 100 190 94 173.4 241 140 88 121.4 19,800
150 150 305 94 173.4 241 152.5 94 173.4 27,000
200 100 195 100 225.5 294 170 88 121.4 27,500
200 150 250 100 225.5 294 177.5 94 173.4 32,300
200 200 360 100 225.5 294 180 100 225.5 40,700
250 100 234 105 277.3 351 183 88 121.4 32,300
250 150 251 105 277.3 351 164.5 94 173.4 36,900
250 250 404 105 277.3 351 202 105 277.3 49,700
300 100 237 110 329.3 408.3 213 88 121.4 41,000
300 150 347 110 329.3 408.3 194.5 94 173.4 46,000
