Swing check valves

Range: The check valves are available from DN40 to DN500, at PFA 16 bars, drilling ISO PN10 or ISO PN16.

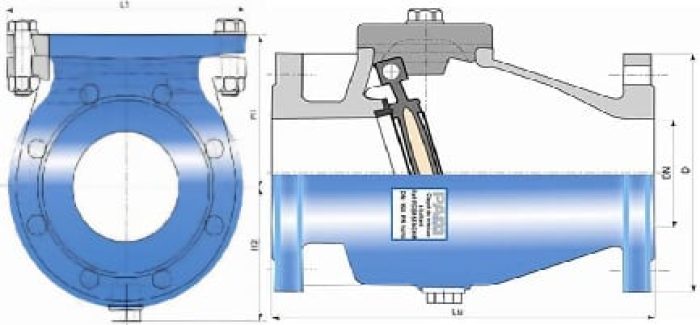

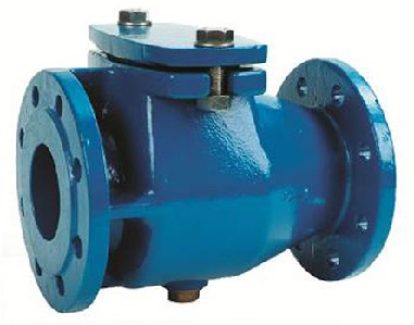

Picture1-32
DN
mm		 D PN10
mm		 D PN16
mm		 H1
mm		 H2
mm		 Lu
mm		 Lu
mm		 Mass PN10
kg		 Mass PN16
kg
40 150 150 100 90 180 164 11,000 11,000
50 165 165 100 90 200 164 14,000 14,000
60 185 185 111 98 240 186 17,000 17,000
65 185 185 111 98 240 186 17,000 17,000
80 200 200 125 105 260 200 21,000 21,000
100 220 220 140 125 300 225 29,000 29,000
125 250 250 175 157 350 304 42,000 42,000
150 285 285 195 155 400 340 60,000 60,000
200 340 340 251 205 500 400 92,000 92,000
250 400 400 290 230 600 464 145,000 145,000
300 455 455 312 255 700 504 175,000 175,000
350 505 520 427 344 800 585 300,000 300,000
400 565 580 461 372 900 660 395,000 395,000
500 670 715 530 424 1100 770 613,000 613,000
