Spring Pressure Relief Valves

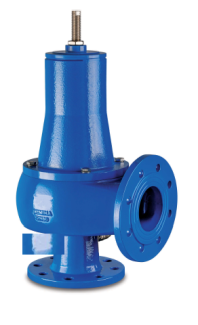

Fast acting spring loaded pressure relief valve

control_valves_featured

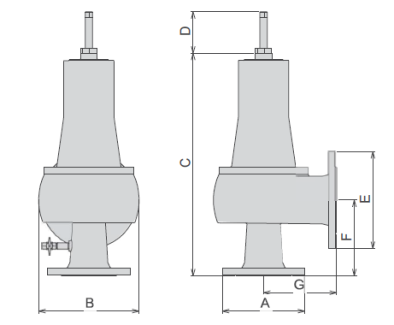

Weights and dimensions
Inlet DN
mm		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 Seat DN
mm		 Outlet DN
mm		 Weight
mm
50/65 185 188 418 100 200 130 150 43.5 80 20
80 200 244 542 130 235 184 177 60 100 36
100 235 244 567 130 270 196.5 177 75 125 41
150 300 409 758 165 360 235 335 100 200 111
