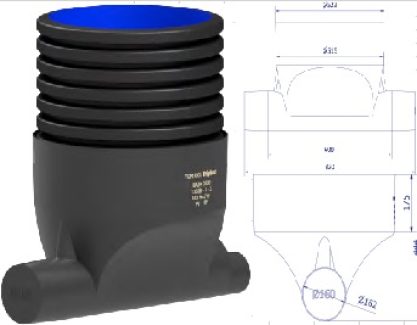

| Type | Sewer inspection manhole base |
|---|---|
| Fields of use | Sewer networks; connection chamber |
| Material | Polyethylene |
| Characteristics |
Total height ~450 mm Useful height ~270 mm Length: without connections ~600 mm with connections ~820 mm Connection: inline IN/OUT with socket, from Ø110 up to Ø160 mm |
| Optional components |
Corrugated column D630, double-wall Fixing gasket for the column Cover: cast iron or composite (EN 124) |
| Advantages |
Easy to install Increased mechanical strength; reinforced chamber body Reduced costs; no masonry construction required Can be manufactured to any desired height and pipe diameter, on request |

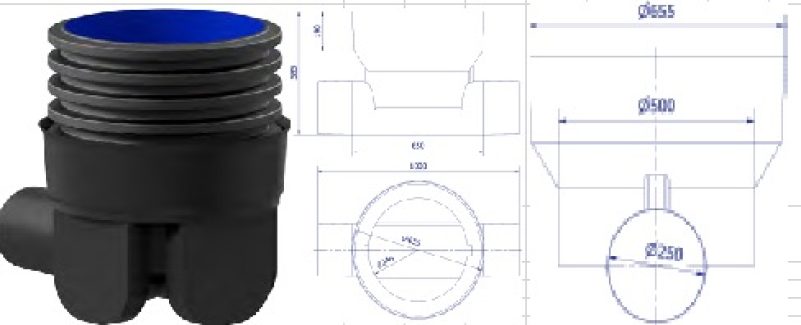

| Type | Sewer inspection manhole base |
|---|---|
| Fields of use | Sewer networks; connection chamber |
| Material | Polyethylene |
| Characteristics |
Construction variants: Line (1IN / 1OUT) — socket connection X — 3IN / 1OUT at 90° — socket connection Y — 3IN / 1OUT at 45° — socket connection X — 3IN / 1OUT at 90° — gasket connection Total height ~610 mm / 510 mm (Line / gasket-connection variants) Useful height ~370 mm / 310 mm (Line / gasket-connection variants) Length: without connections ~660 mm with connections ~1000 mm Connection: IN/OUT with socket, from Ø110 up to Ø250 mm with gasket up to Ø250 mm (constructive variant for inlet with gasket) |
| Optional components |
Corrugated column D630, double-wall Fixing gasket for the column Cover: cast iron or composite (EN 124) |
