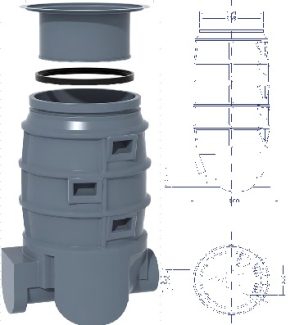

| Type | Sewer inspection chamber |
|---|---|
| Fields of use | Sewer networks; connection chamber |
| Material | Polyethylene |
| Characteristics |

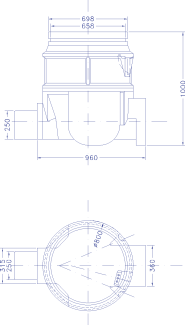

Diameter 800 mm Heights: 1000 / 1500 / 2000 mm Interior steps for access into the chamber |
| Optional components |
Fixing gasket Riser (elevation) elements: 30 cm, 60 cm PE 630 cover Cast-iron or composite covers according to EN 124 |
| Advantages |
Easy to install Increased mechanical strength; ribbed, reinforced chamber body |
| Height (mm) | Chamber type |
|---|---|
| 1000 mm | Cămin PE D800 out 160,200,250,315 |
| 1500 mm | Cămin PE D800 out 160,200,250,315 |
| 2000 mm | Cămin PE D800 out 160,200,250,315 |
| Observation |
In-line entry with the outlet, plus side inlets, is made using sealing/fixing gaskets. The outlet is made with a socket matching the spigot diameter. On request, within technical limits, other outlet diameters can be made, up to max Ø315 mm |
