| PN10 | PN16 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN (mm) |
Closing direction |

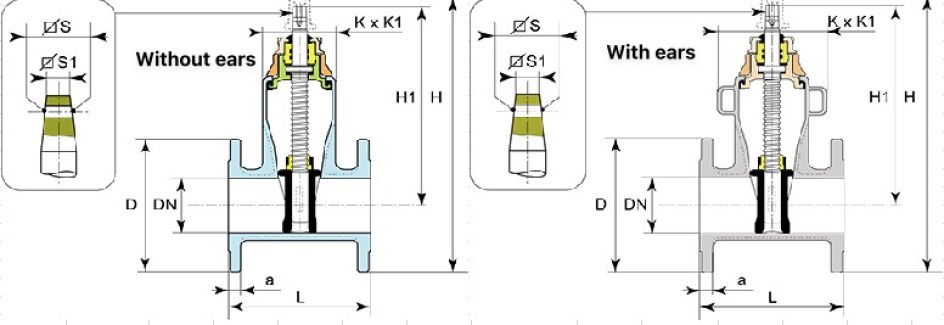

Version | L(mm) | H1(mm) | H(mm) | D(mm) | KxK1(mm) | a(mm) | Number of turns | SxS(mm) | S1xS1(mm) | Mass(Kg) | Mass(Kg) |
| 40 | Clockwise | Bare shaft | 140 | 227 | 333 | 150 | 95×144 | 19 | 12.5 | 15.2 | 14.3 | 8500 | 8500 |
| 50 | Clockwise | Bare shaft | 150 | 222 | 335 | 165 | 95×144 | 19 | 12.5 | 15.2 | 14.3 | 10500 | 10500 |
| 65 | Clockwise | Bare shaft | 170 | 283 | 363 | 185 | 105×174 | 19 | 17 | 18.5 | 17 | 14200 | 14200 |
| 80 | Clockwise | Bare shaft | 180 | 275 | 361 | 200 | 105×174 | 19 | 17 | 18.5 | 17 | 15500 | 15500 |
| 100 | Clockwise | Bare shaft | 190 | 322 | 419.5 | 225 | 111×194 | 19 | 23 | 20.6 | 19 | 19000 | 19000 |
| 125 | Clockwise | Bare shaft | 200 | 382.5 | 487.5 | 250 | 126×220 | 19 | 28 | 20.6 | 19 | 25600 | 25600 |
| 150 | Clockwise | Bare shaft | 210 | 410 | 535 | 285 | 136×257 | 19 | 32 | 20.6 | 19 | 32200 | 32200 |
| 200 | Clockwise | Bare shaft | 230 | 515 | 745 | 340 | 266×382 | 20 | 33 | 25.7 | 24.3 | 66000 | 66000 |
| 250 | Clockwise | Bare shaft | 250 | 595 | 855 | 400 | 285×470 | 22 | 41.5 | 25.7 | 24.3 | 108000 | 108000 |
| 300 | Clockwise | Bare shaft | 270 | 705 | 1010 | 455 | 305×538 | 24.5 | 50 | 25.7 | 24.3 | 155000 | 157000 |
