PVC

PVC-U Potable Water Pipes in accordance with ΕΝ 1452-2

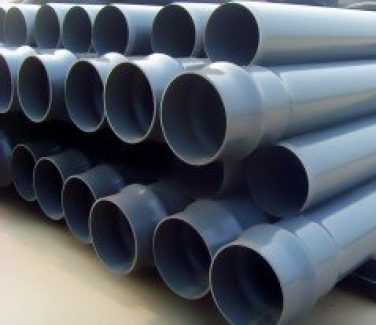

pvc_featured

Pipe length is 6m, Sealing Ring is included, pipe color is Grey.

External Diameter DN 6 ATM 10 ATM 12,5 ATM 16 ATM
mm Wall Thickness
mm		 Weight
Kg/m		 Wall Thickness
mm		 Weight
Kg/m		 Wall Thickness
mm		 Weight
Kg/m		 Wall Thickness
mm		 Weight
Kg/m
50 1.5 0.36 2.4 0.56 3 0.68 3.7 0.82
63 1.9 0.562 3 0.854 3.8 1.066 4.7 1.29
75 2.2 0.782 3.6 1.22 4.5 1.501 5.6 1.82
90 2.7 1.13 4.3 1.75 5.4 2.137 6.7 2.61
110 2.7 1.39 4.2 2.09 5.3 2.61 6.6 3.19
125 3.1 1.79 4.8 2.7 6 3.34 7.4 4.05
140 3.5 2.27 5.4 3.4 6.7 4.18 8.3 5.09
160 4 2.94 6.2 4.45 7.7 5.47 9.5 6.63
180 4.4 3.65 6.9 5.57 8.6 6.88 10.7 8.44
200 4.9 4.48 7.7 6.89 9.6 8.51 11.9 10.39
225 5.5 5.66 8.6 8.69 10.8 10.8 13.4 13.12
250 6.2 7.09 9.6 10.75 11.9 13.2 14.8 16.09
280 6.9 8.79 10.7 13.39 13.4 16.6 16.8 20.42
315 7.7 11.1 12.1 17.02 15 20.9 18.7 25.58
355 8.7 14.04 13.6 21.53 16.9 26.5 21.1 32.52
400 9.8 17.76 15.3 27.26 19.1 33.7 23.7 41.19
450 11 22.45 17.2 34.5 21.5 42.7 26.7 52.2
500 12.3 27.85 19.1 42.46 23.9 52.6 29.7 64.51
560 13.7 34.76 21.4 53.26 26.7 65.8 – –
630 15.4 43.9 67.49 67.49 − − – –
