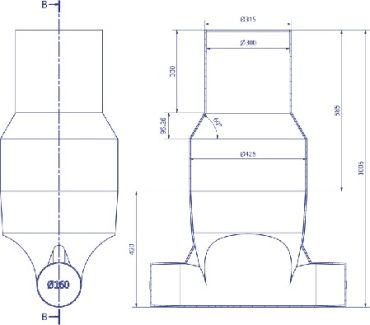

Monobloc inspection chamber body equipped with a transition sleeve and a cover with telescopic PVC tube
| Type | Sewer inspection chamber |
|---|---|
| Fields of use | Sewer networks; connection chamber |
| Material | Polyethylene; on request polypropylene |
| Standard |
SR EN 13598-1:2020 SR EN 13598-2:2020 |
| Characteristics |
Height 1000 / 1250 / 1500 mm Length ~460 mm without connections; ~710 mm with connections Nominal column diameter 426 mm, reduced to 315 mm Connections: inline IN/OUT with socket: Ø110, Ø125, Ø160 mm 3IN–1OUT at 90°, with socket: Ø110, Ø125, Ø160 mm |
| Optional components |
Cover: PE DN400 Cast-iron or composite cover (EN 124) |
| Advantages |
Easy to install Increased mechanical strength; reinforced chamber body Reduced costs; no masonry work required Side connection possible |
