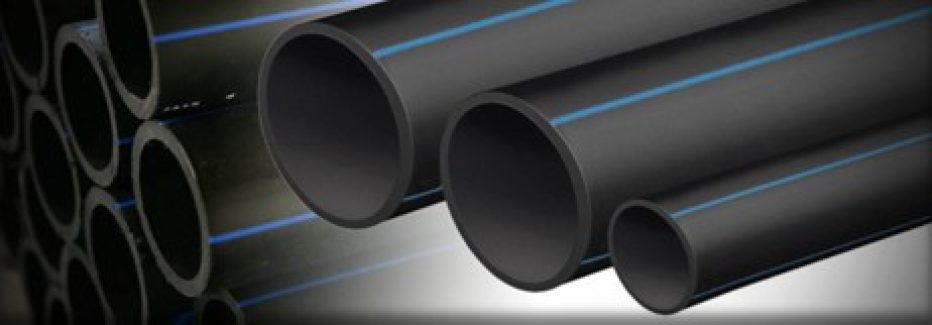

HDPE100- MRS 10

in accordance with EΝ 12201-2


Pipes packing: Coils (DN16 – DN125) and Straight lengths of 6m, 12m and 13,5m (DN125 – DN630). For special projects, pipes up to 20m length and up to DN2000 can be supplied.

PE100 SDR 41 SDR 33 SDR 26 SDR 17 SDR 13,6
PN4 PN5 PN6 PN10 PN12,5
Wall thickness Weight Wall thickness Weight Wall thickness Weight Wall thickness Weight Wall thickness Weight
mm Kg/m mm Kg/m mm Kg/m mm Kg/m mm Kg/m
20 – – – – – – – – – –
25 – – – – – – – – 2.0 0.126
32 – – – – – – 2.0 0.195 2.4 0.227
40 – – – – – – 2.4 0.289 3.0 0.355
50 – – – – 2.0 0.319 3.0 0.445 3.7 0.540
63 – – 2 0.38 2.5 0.491 3.8 0.709 4.7 0.861
75 2.0 0.5 2.3 0.6 2.9 0.67 4.5 1.00 5.6 1.22
90 2.3 0.64 2.8 0.77 3.6 0.97 5.4 1.44 6.7 1.75
110 2.7 0.91 3.4 1.14 4.2 1.42 6.6 2.14 8.1 2.59
125 3.1 1.190 3.9 1.49 4.8 1.83 7.4 2.73 9.2 3.24
140 3.5 1.51 4.3 1.84 5.4 2.30 8.3 3.43 10.3 4.18
160 4 1.97 4.9 2.39 6.2 3.02 9.5 4.47 11.8 5.45
180 4.4 2.43 5.5 3.02 6.9 3.28 10.7 5.66 13.3 6.92
200 4.9 3.01 6.2 3.79 7.7 4.65 11.9 6.98 14.7 8.49
225 5.5 3.8 6.9 4.74 8.6 5.84 13.4 8.86 16.6 10.80
250 6.2 4.76 7.7 5.880 9.6 7.24 14.8 10.90 18.4 13.30
280 6.9 5.94 8.6 7.35 10.7 9.02 16.6 13.60 20.6 16.60
315 7.7 7.45 9.7 9.33 12.1 11.49 18.7 17.30 23.2 21.10
355 8.7 9.49 10.9 11.82 13.6 14.51 21.1 22.00 26.1 26.70
400 9.8 12.05 12.3 15.02 15.3 18.40 23.7 27.80 29.4 33.90
450 11 15.21 13.8 18.96 17.2 23.60 26.7 35.20 33.1 43.00
500 12.3 18.9 15.3 23.36 19.1 29.10 29.7 43.50 36.8 53.00
560 13.7 23.58 17.2 29.41 21.4 36.50 33.2 54.50 41.2 66.50
630 15.4 29.82 19.3 37.13 27.2 46.30 37.4 69.00 46.3 84.00
PE100 SDR 11 SDR 9 SDR 7,4 SDR 6
PN16 PN20 PN25 PN32
Wall thickness Weight Wall thickness Weight Wall thickness Weight Wall thickness Weight
mm Kg/m mm Kg/m mm Kg/m mm Kg/m
16 2.0 0.114 2.0 0.088 2.3 0.100 3.0 0.122
20 2.3 0.167 2.3 0.130 3.0 0.160 3.4 0.177
25 3.0 0.274 3.0 0.207 3.5 0.237 4.2 0.274
32 3.7 0.423 3.6 0.322 4.4 0.381 5.4 0.448
40 4.6 0.656 4.5 0.502 5.5 0.593 6.7 0.693
50 5.8 1.040 5.6 0.778 6.9 0.925 8.3 1.08
63 6.8 1.45 7.1 1.24 8.6 1.46 10.5 1.71
75 8.2 2.10 8.4 1.75 10.3 2.07 12.5 2.42
90 10.0 3.11 10.1 2.52 12.3 2.97 15.0 3.49
110 11.4 4.04 12.3 3.74 15.1 4.45 18.3 5.20
125 12.7 5.04 14.0 4.84 17.1 5.73 20.8 6.70
140 14.6 6.61 15.7 6.07 19.2 7.20 23.3 8.41
160 16.4 8.36 17.9 7.90 21.9 9.37 26.6 11.00
180 18.2 10.30 20.1 9.99 24.6 11.80 29.9 13.90
200 20.5 13.00 22.4 12.40 27.4 14.70 33.2 17.10
225 22.7 16.00 25.2 15.60 30.8 18.50 27.4 21.70
250 25.4 20.10 27.9 19.20 34.2 22.90 41.5 26.70
280 28.6 25.50 31.3 24.20 38.3 28.70 46.5 33.50
315 32.2 32.30 35.2 30.60 43.1 36.30 52.3 42.50
355 36.3 41.00 39.7 38.80 48.5 46.00 – –
400 40.9 52.00 44.7 49.30 54.7 58.50 – –
450 45.4 64.10 50.3 62.40 61.5 74.00 – –
500 50.8 80.30 55.8 76.80 – – – –
560 50.8 81.5 62.2 97.5 – – – –
630 57.2 101.8 57.2 103.2 – – – –
