HDΡΕ100

HDPE100 - MRS 10 and HDPE80 - MRS 8, in accordance with ΕΝ12201-2.
Pipes packing: Coils (DN16 - DN125) and Straight lengths of 6m, 12m and 13,5m (DN125 - DN630). For special projects, pipes up to 20m length and up to DN2000 can be supplied.

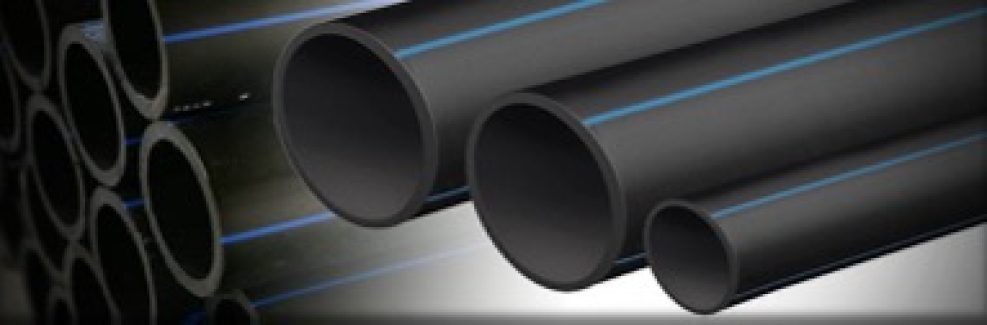

Picture1-8
HD PE100 and PE100 RC pipes in accordance with EN 12201-2
PE100 SDR 26 SDR 17 SDR 13,6 SDR 11
PN6 PN10 PN12,5 PN16
Diameter DN
mm		 Wall thickness Weight Wall thickness Weight Wall thickness Weight Wall thickness Weight
mm Kg/m mm Kg/m mm Kg/m mm Kg/m
20 – – – – – – 2.0 0.114
25 – – – – 2.0 0.126 2.3 0.167
32 – – 2.0 0.195 2.4 0.227 3.0 0.274
40 – – 2.4 0.289 3.0 0.355 3.7 0.423
50 2.0 0.319 3.0 0.445 3.7 0.540 4.6 0.656
63 2.5 0.491 3.8 0.709 4.7 0.861 5.8 1.040
75 2.9 0.67 4.5 1.00 5.6 1.22 6.8 1.45
90 3.6 0.97 5.4 1.44 6.7 1.75 8.2 2.10
110 4.2 1.42 6.6 2.14 8.1 2.59 10.0 3.11
125 4.8 1.83 7.4 2.73 9.2 3.24 11.4 4.04
140 5.4 2.30 8.3 3.43 10.3 4.18 12.7 5.04
160 6.2 3.02 9.5 4.47 11.8 5.45 14.6 6.61
180 6.9 3.28 10.7 5.66 13.3 6.92 16.4 8.36
200 7.7 4.65 11.9 6.98 14.7 8.49 18.2 10.30
225 8.6 5.84 13.4 8.86 16.6 10.80 20.5 13.00
250 9.6 7.24 14.8 10.90 18.4 13.30 22.7 16.00
280 10.7 9.02 16.6 13.60 20.6 16.60 25.4 20.10
315 12.1 11.49 18.7 17.30 23.2 21.10 28.6 25.50
355 13.6 14.51 21.1 22.00 26.1 26.70 32.2 32.30
400 15.3 18.40 23.7 27.80 29.4 33.90 36.3 41.00
450 17.2 23.60 26.7 35.20 33.1 43.00 40.9 52.00
500 19.1 29.10 29.7 43.50 36.8 53.00 45.4 64.10
560 21.4 36.50 33.2 54.50 41.2 66.50 50.8 80.30
630 27.2 46.30 37.4 69.00 46.3 84.00 57.2 101.80
HD PE100 and PE100 RC pipes in accordance with EN 12201-2
PE100 SDR 9 SDR 7,4 SDR 6
PN20 PN25 PN32
Diameter DN
mm		 Wall thickness Weight Wall thickness Weight Wall thickness Weight
mm Kg/m mm Kg/m mm Kg/m
16 2.0 0.088 2.3 0.100 3.0 0.122
20 2.3 0.130 3.0 0.160 3.4 0.177
25 3.0 0.207 3.5 0.237 4.2 0.274
32 3.6 0.322 4.4 0.381 5.4 0.448
40 4.5 0.502 5.5 0.593 6.7 0.693
50 5.6 0.778 6.9 0.925 8.3 1.08
63 7.1 1.24 8.6 1.46 10.5 1.71
75 8.4 1.75 10.3 2.07 12.5 2.42
90 10.1 2.52 12.3 2.97 15.0 3.49
110 12.3 3.74 15.1 4.45 18.3 5.20
125 14.0 4.84 17.1 5.73 20.8 6.70
140 15.7 6.07 19.2 7.20 23.3 8.41
160 17.9 7.90 21.9 9.37 26.6 11.00
180 20.1 9.99 24.6 11.80 29.9 13.90
200 22.4 12.40 27.4 14.70 33.2 17.10
225 25.2 15.60 30.8 18.50 27.4 21.70
250 27.9 19.20 34.2 22.90 41.5 26.70
280 31.3 24.20 38.3 28.70 46.5 33.50
315 35.2 30.60 43.1 36.30 52.3 42.50
355 39.7 38.80 48.5 46.00 – –
400 44.7 49.30 54.7 58.50 – –
450 50.3 62.40 61.5 74.00 – –
500 55.8 76.80 – – – –
