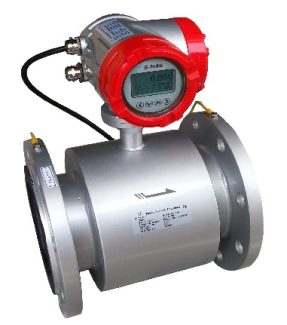

| Transmitter Specifications | |
|---|---|
| Power Supply | 220V AC (+%10 /-%15) – 50-60 Hz 24 V DC (±%10) |
| Body Material | Cast Aluminum |
| Weight | 2 kg |
| Ambient Temperature | -5°C/+55°C (protected from direct |
| Flow velocity range (with Remote Display) | 0.3 – 12 m/s (0.1 – 12m/s) |
| Measurement Accuracy | ± % 0,5 |
| Pulse Output | Open collector (isolated) |
| Frequency Output | 1 – 5000 Hz (isolated) |
| Current Output | 4-20mA (Active – isolated) |
| Communicates Output (option) | HART , MODBUS, RS485 |
| Protection Class | IP67 |
| Display | Clear backlighted LCD Display (Instant,accumulation,Forward,Reverse and Flowrate percentage) |
| Keypad | 4 x buttons (and infrared decoder) |
| Language | English / Turkish |
| Power-Off Protection | The data should be kept more than 10 years |
| DN | |
|---|---|
| 10 | 200 |
| 15 | 250 |
| 20 | 300 |
| 25 | 350 |
| 32 | 400 |
| 40 | 450 |
| 50 | 500 |
| 65 | 600 |
| 80 | 700 |
| 100 | 800 |
| 125 | 900 |
| 150 | 1000 |
