The post-indicator allows the operating, the anchoring, and the remote control of the valve position.
| DN of the Valve | 100 | 125 | 150 | 200 | 250 | 300 | 400 |
|---|---|---|---|---|---|---|---|
| Number of Turns to Open | 21 | 25 | 30 | 33 | 41.5 | 50 | 70 |

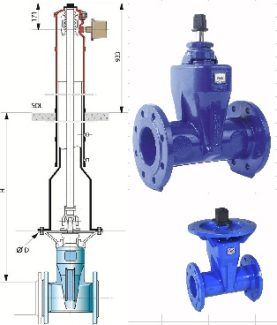

| Flange Diameter for Pipe Connection (D) | 305 | ||||||
| Depth of Cover (H) | 771 to 1621 | 804 to 1654 | 827 to 1677 | 914 to 1764 | 998 to 1848 | 1042 to 1892 | 1198 to 2048 |
| Indicator Post Viewing Height (Above Ground Level) |
762 | ||||||
| Total Mass | 173 | 181 | 190 | 235 | 288 | 349 | 393 |
| DN mm |
DN | Pressure | Type | PN | Version | Mass kg |
|---|---|---|---|---|---|---|
| 100 | 4″ | 235 psi | NG Type 23 | 10-16 | Without flange / square AWWA | 25,300 |
| 100 | 4″ | 235 psi | NG Type 23 | 10-16 | With post-indicator without detector | 171,000 |
| 125 | 5″ | 235 psi | NG Type 23 | 10-16 | Without flange / square AWWA | 30,100 |
| 125 | 5″ | 235 psi | NG Type 23 | 10-16 | With post-indicator without detector | 179,000 |
| 150 | 6″ | 235 psi | NG Type 23 | 10-16 | Without flange / square AWWA | 37,000 |
| 150 | 6″ | 235 psi | NG Type 23 | 10-16 | With post-indicator without detector | 187,000 |
| 200 | 8″ | 235 psi | NG Type 21 | 16 | Without flange / square AWWA | 84,500 |
| 200 | 8″ | 235 psi | NG Type 23 | 16 | With post-indicator without detector | 229,000 |
| 250 | 10″ | 200 psi | NG Type 21 | 16 | Without flange / square AWWA | 136,600 |
| 250 | 10″ | 200 psi | NG Type 23 | 16 | With post-indicator without detector | 276,000 |
| 300 | 12″ | 200 psi | NG Type 21 | 16 | Without flange / square AWWA | 196,300 |
| 300 | 12″ | 200 psi | NG Type 23 | 16 | With post-indicator without detector | 330,000 |
| 400 | 16″ | 175 psi | Classique Type 23 | 16 | Without flange / square AWWA | 299,000 |
| 400 | 16″ | 175 psi | Classique Type 23 | 16 | With post-indicator without detector | 393,000 |

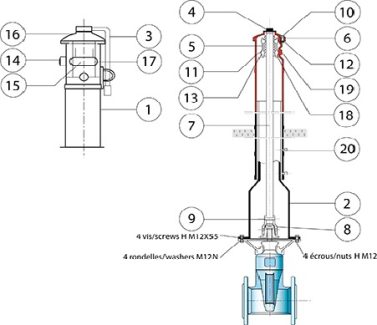

| Item | Designation | Material |
|---|---|---|
| 1 | Body | Grey iron |
| 2 | Stem | Grey iron |
| 3 | Flange | Ductile iron |
| 4 | Operating stem | Bronze |
| 5 | EURO 20 valve | Ductile iron |
| 6 | Circlips | Steel |
| 7 | Operating stem | Mild steel |
| 8 | Operating screed | Grey iron |
| 9 | Pin | Brass |
| 10 | Bolt + nut | Steel |
| 11 | Electrical Micro-contact PCVS | |
| 12 | Bonnet | Grey iron |
| 13 | Adjusting screw | Steel |
