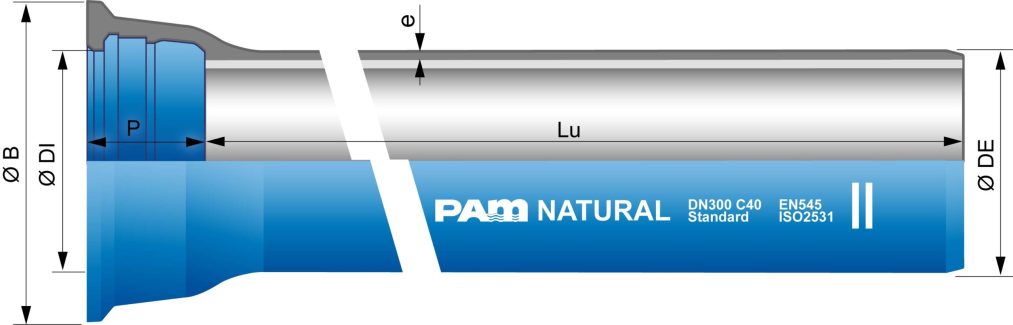

| DN mm |
Class bar |
PFA bar |
Lu m |
e mm |
Ø DE mm |
Ø DI mm |
P mm |
Ø Β mm |
|---|---|---|---|---|---|---|---|---|
| 60 | C40 | 40 | 6000 | 4.4 | 76.9 | 80.3 | 89.5 | 122.3 |
| 80 | C40 | 40 | 6000 | 4.4 | 97.8 | 101.4 | 92.5 | 144.1 |
| 100 | C40 | 40 | 6000 | 4.4 | 117.8 | 121.4 | 94.5 | 166.9 |
| 125 | C40 | 40 | 6000 | 4.4 | 143.7 | 147.4 | 97.5 | 193.1 |
| 150 | C40 | 40 | 6000 | 4.5 | 169.7 | 173.4 | 100.5 | 220.8 |
| 200 | C40 | 40 | 6000 | 4.7 | 221.6 | 225.2 | 106.5 | 275.1 |
| 250 | C40 | 40 | 6000 | 5.5 | 273 | 276.8 | 105.5 | 328.6 |
| 300 | C40 | 40 | 6000 | 6.2 | 324.9 | 328.8 | 107.5 | 385.3 |
| 350 | C30 | 30 | 6000 | 6.4 | 376.8 | 380.9 | 110.5 | 444.5 |
| 400 | C30 | 30 | 6000 | 6.5 | 427.7 | 431.9 | 112.5 | 494.6 |
| 450 | C30 | 30 | 6000 | 6.9 | 478.6 | 483 | 115.5 | 546.5 |
| 500 | C30 | 30 | 6000 | 7.5 | 530.5 | 535 | 117.5 | 600.9 |
| 600 | C30 | 30 | 6000 | 8.7 | 633.3 | 638.1 | 132.5 | 712 |
| 700 | C25 | 25 | 6960 | 8.8 | 738 | 741.7 | 192 | 821.9 |
| 800 | C25 | 25 | 6950 | 9.6 | 842 | 845.8 | 197 | 935.6 |
| 900 | C25 | 25 | 6950 | 10.6 | 945 | 948.9 | 200 | 1043.4 |
| 1000 | C25 | 25 | 6960 | 11.6 | 1048 | 1052 | 203 | 1152.4 |
| 1100 | C25 | 25 | 8190 | 12.6 | 1152 | 1155.1 | 225 | 1300 |
| 1200 | C25 | 25 | 8185 | 13.6 | 1255 | 1260 | 235 | 1412.5 |
| 1400 | C25 | 25 | 8170 | 15.7 | 1462 | 1467.9 | 245 | 1592.1 |
| 1500 | C25 | 25 | 8160 | 16.7 | 1565 | 1571.1 | 265 | 1709.8 |
| 1600 | C25 | 25 | 8160 | 17.7 | 1668 | 1674.2 | 265 | 1815.9 |
| 1800 | C25 | 25 | 8150 | 19.7 | 1875 | 1881.5 | 275 | 2032.2 |
| 2000 | C25 | 25 | 8130 | 21.8 | 2082 | 2088.8 | 290 | 2259 |
