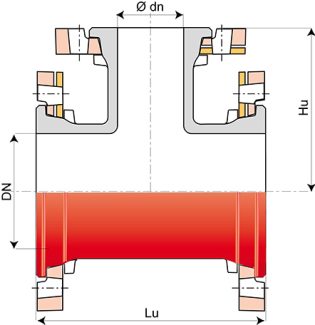

| DN mm |
Ø dn mm |
Lu mm |
Hu mm |
Mass PN10 kg |
Mass PN16 kg |
Mass PN25 kg |
|---|---|---|---|---|---|---|
| 80 | 80 | 330 | 165 | 15.6 | 15.6 | 15.6 |
| 150 | 150 | 440 | 220 | 35 | 35 | – |
| 200 | 40 | 520 | 200 | – | 41.5 | – |
| 200 | 50 | 520 | 210 | – | 42 | – |
| 200 | 60 | 520 | 220 | – | 42.5 | – |
| 200 | 80 | 520 | 235 | – | 43.5 | – |
| 200 | 100 | 520 | 240 | 44.5 | 44.5 | – |
| 200 | 125 | 520 | 240 | – | 46 | – |
| 200 | 150 | 520 | 250 | – | 48 | – |
| 200 | 200 | 520 | 260 | 52 | 51 | – |
| 250 | 100 | 430 | 270 | – | 50.9 | – |
| 250 | 200 | 540 | 290 | – | 72.3 | – |
| 250 | 250 | 600 | 300 | – | 83 | – |
| 300 | 60 | 450 | 297 | 74 | – | – |
| 300 | 80 | 450 | 298 | 75 | – | – |
| 300 | 100 | 450 | 300 | 68.4 | 67 | – |
| 300 | 150 | 560 | 310 | 89 | 87 | – |
| 300 | 200 | 560 | 320 | 93 | 92 | – |
| 300 | 250 | 680 | 305 | – | 106 | – |
| 300 | 300 | 680 | 340 | 117 | 115 | – |
| 350 | 100 | 470 | 330 | 97 | 98 | – |
| 350 | 200 | 590 | 350 | – | 119 | 132 |
| 350 | 250 | 644 | 360 | 129 | 130 | 145.1 |
| 350 | 300 | 760 | 370 | 143 | 144 | – |
| 350 | 350 | 760 | 380 | 157 | 159 | – |
| 400 | 80 | 490 | 340 | – | 122.8 | – |
| 400 | 100 | 490 | 360 | 114 | 123 | – |
| 400 | 150 | 605 | 370 | – | 142 | – |
| 400 | 200 | 605 | 380 | 136.5 | – | – |
| 400 | 250 | 724 | 390 | 158 | – | 187 |
| 400 | 300 | 724 | 400 | 163.8 | 172.1 | – |
| 400 | 400 | 840 | 420 | 194.5 | 208 | – |
| 450 | 100 | 515 | 395 | – | 153.3 | – |
| 450 | 150 | 620 | 400 | 144 | – | – |
| 500 | 100 | 533 | 420 | – | 194 | – |
| 500 | 150 | 650 | 430 | 192 | 218 | – |
| 500 | 200 | 650 | 440 | 196 | 222 | – |
| 500 | 400 | 880 | 480 | – | 293 | – |
| 500 | 500 | 1000 | 500 | – | 345 | – |
| 600 | 100 | 700 | 475 | 255 | – | – |
| 600 | 300 | 812 | 520 | – | 352.1 | – |
| 600 | 400 | 930 | 540 | 344 | 398 | – |
| 600 | 500 | 1100 | 550 | – | 632 | – |
| 600 | 600 | 1100 | 580 | 444 | 519 | – |
