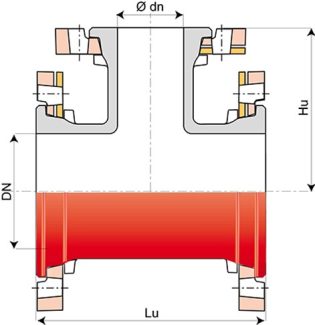

| DN mm |
Ø dn mm |
Lu mm |
Hu mm |
|---|---|---|---|
| 80 | 80 | 330 | 165 |
| 150 | 150 | 440 | 220 |
| 200 | 40 | 520 | 200 |
| 200 | 50 | 520 | 210 |
| 200 | 60 | 520 | 220 |
| 200 | 80 | 520 | 235 |
| 200 | 100 | 520 | 240 |
| 200 | 125 | 520 | 240 |
| 200 | 150 | 520 | 250 |
| 200 | 200 | 520 | 260 |
| 250 | 100 | 430 | 270 |
| 250 | 200 | 540 | 290 |
| 250 | 250 | 600 | 300 |
| 300 | 60 | 450 | 297 |
| 300 | 80 | 450 | 298 |
| 300 | 100 | 450 | 300 |
| 300 | 150 | 560 | 310 |
| 300 | 200 | 560 | 320 |
| 300 | 250 | 680 | 305 |
| 300 | 300 | 680 | 340 |
| 350 | 100 | 470 | 330 |
| 350 | 200 | 590 | 350 |
| 350 | 250 | 644 | 360 |
| 350 | 300 | 760 | 370 |
| 350 | 350 | 760 | 380 |
| 400 | 80 | 490 | 340 |
| 400 | 100 | 490 | 360 |
| 400 | 150 | 605 | 370 |
| 400 | 200 | 605 | 380 |
| 400 | 250 | 724 | 390 |
| 400 | 300 | 724 | 400 |
| 400 | 400 | 840 | 420 |
| 450 | 100 | 515 | 395 |
| 450 | 150 | 620 | 400 |
| 500 | 100 | 533 | 420 |
| 500 | 150 | 650 | 430 |
| 500 | 200 | 650 | 440 |
| 500 | 400 | 880 | 480 |
| 500 | 500 | 1000 | 500 |
| 600 | 100 | 700 | 475 |
| 600 | 300 | 812 | 520 |
| 600 | 400 | 930 | 540 |
| 600 | 500 | 1100 | 550 |
| 600 | 600 | 1100 | 580 |
