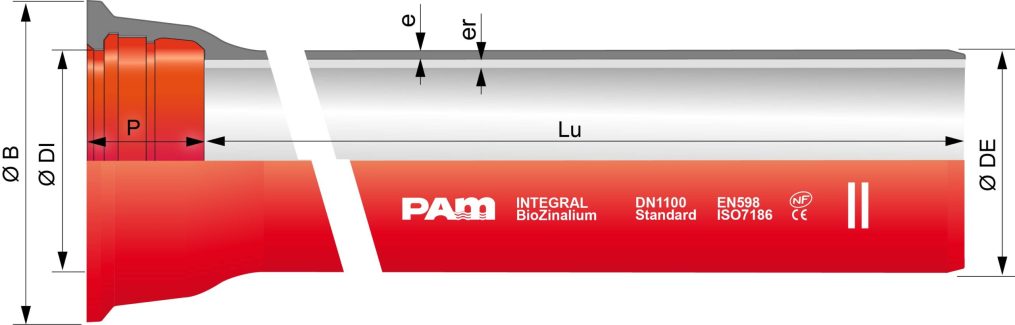

| DN mm |
Lu m |
e mm |
er mm |
Ø DE mm |
Ø DI mm |
P mm |
Ø B mm |
PFA bar |
|---|---|---|---|---|---|---|---|---|
| 80 | 6 | 5 | 4 | 97.8 | 101.4 | 92.5 | 167 | 40 |
| 100 | 6 | 5 | 4 | 117.8 | 121.4 | 94.5 | 188 | 40 |
| 125 | 6 | 5 | 4 | 143.7 | 147.4 | 97.5 | 215 | 40 |
| 150 | 6 | 5 | 4 | 169.7 | 173.4 | 100.5 | 242 | 40 |
| 200 | 6 | 5.1 | 4 | 221.6 | 225.2 | 106.5 | 295 | 40 |
| 250 | 6 | 5.3 | 4 | 273 | 276.8 | 105.5 | 352 | 38 |
| 300 | 6 | 5.6 | 4 | 324.9 | 328.8 | 107.5 | 409.2 | 35 |
| 350 | 6 | 6 | 5 | 376.8 | 380.9 | 110.5 | 464.2 | 32 |
| 400 | 6 | 6.3 | 5 | 427.7 | 431.9 | 112.5 | 516.2 | 30 |
| 450 | 6 | 6.7 | 5 | 478.6 | 483 | 115.5 | 574.2 | 29 |
| 500 | 6 | 7 | 5 | 530.5 | 535 | 117.5 | 629.2 | 28 |
| 600 | 6 | 7.7 | 5 | 633.3 | 638.1 | 132.5 | 738.5 | 26 |
| 700 | 6.96 | 9.6 | 6 | 736.6 | 741.7 | 192 | 863 | 29 |
| 800 | 6.95 | 10.4 | 6 | 840.4 | 845.8 | 197 | 974 | 28 |
| 900 | 6.95 | 11.2 | 6 | 943.2 | 948.9 | 200 | 1082 | 27 |
| 1000 | 6.96 | 12 | 6 | 1046 | 1052 | 203 | 1191 | 26 |
| 1100 | 8.19 | 14.4 | 6 | 1148.8 | 1155.1 | 225 | 1300 | 29 |
| 1200 | 8.19 | 15.3 | 6 | 1252.3 | 1260 | 235 | 1412.5 | 29 |
| 1400 | 8.17 | 17.1 | 9 | 1458.9 | 1467.9 | 245 | 1592.1 | 28 |
| 1500 | 8.16 | 18 | 9 | 1561.7 | 1571.1 | 265 | 1709.8 | 27 |
| 1600 | 8.16 | 18.9 | 9 | 1664.5 | 1674.2 | 265 | 1815.9 | 27 |
| 1800 | 8.15 | 20.7 | 9 | 1871.1 | 1881.5 | 275 | 2032.2 | 27 |
| 2000 | 8.13 | 22.5 | 9 | 2077.7 | 2088.8 | 290 | 2259 | 26 |
