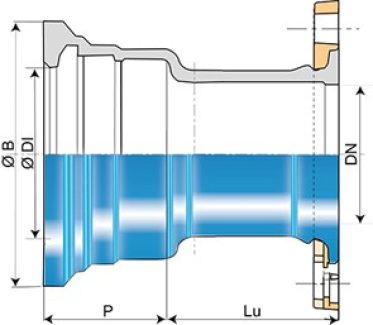

| DN mm |
Lu mm |
P mm |
Ø DI mm |
Ø B mm |
|---|---|---|---|---|
| 60 | 142 | 82 | 80.2 | 143.5 |
| 80 | 110 | 85 | 101.4 | 167.5 |
| 100 | 110 | 88 | 121.4 | 187.5 |
| 125 | 110 | 91 | 147.4 | 214.5 |
| 150 | 115 | 94 | 173.4 | 241 |
| 200 | 120 | 100 | 225.5 | 294 |
| 250 | 135 | 105 | 277.3 | 351 |
| 300 | 130 | 110 | 329.3 | 408.3 |
| 350 | 130 | 110 | 381.9 | 464.3 |
| 400 | 135 | 112 | 432.9 | 515.3 |
| 450 | 140 | 115.5 | 484 | 573 |
| 500 | 145 | 117.5 | 536 | 628 |
| 600 | 155 | 132.5 | 639.1 | 737 |
| 700 | 190 | 150 | 742.2 | 861 |
| 800 | 200 | 160 | 846.3 | 972 |
| 900 | 210 | 175 | 949.4 | 1080 |
| 1000 | 220 | 185 | 1052.5 | 1189 |
| 1100 | 220 | 150 | 1155 | 1298 |
| 1200 | 240 | 195 | 1263 | 1412 |
| 1400 | 310 | 255 | 1467 | 1600 |
| 1600 | 330 | 275 | 1673 | 1820 |
| 1800 | 387 | 258 | 1881.7 | 2038 |
| 2000 | 395 | 290 | 2089 | 2269 |
