| DN mm |
Lu mm |
P mm |

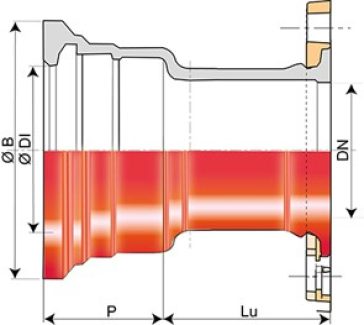

Ø DI mm |
Ø B mm |
|---|---|---|---|---|
| 80 | 110 | 85.0 | 101.0 | 167.5 |
| 100 | 110 | 88.0 | 121.0 | 187.5 |
| 125 | 110 | 91.0 | 147.0 | 214.5 |
| 150 | 115 | 94.0 | 173.0 | 241.0 |
| 200 | 120 | 100.0 | 225.0 | 294.0 |
| 250 | 125 | 105.0 | 277.0 | 351.0 |
| 300 | 130 | 110.0 | 329.0 | 408.0 |
| 350 | 135 | 110.0 | 381.4 | 464.3 |
| 400 | 140 | 112.0 | 432.4 | 515.3 |
| 450 | 145 | 115.5 | 483.5 | 573.0 |
| 500 | 170 | 117.5 | 535.5 | 628.0 |
| 600 | 170 | 132.5 | 638.6 | 737.0 |
| 700 | 190 | 150.0 | 742.2 | 861.0 |
| 800 | 200 | 160.0 | 846.3 | 972.0 |
| 900 | 210 | 175.0 | 949.4 | 1080.0 |
| 1000 | 220 | 185.0 | 1052.5 | 1189.0 |
