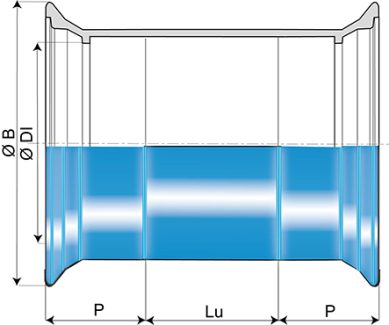

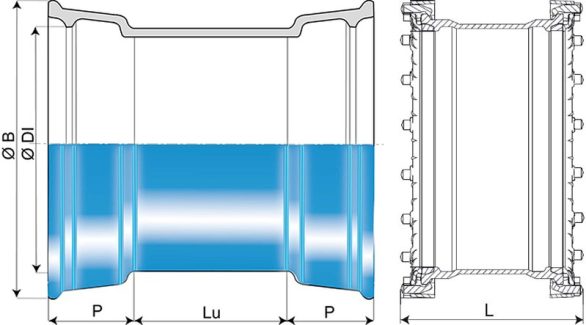

| DN mm |
L mm |
Lu mm |
P mm |
Ø DI mm |
Ø B mm |
Mass kg |
|---|---|---|---|---|---|---|
| 60 | 454 | 156 | 76 | 80.3 | 143.5 | 6.9 |
| 100 | 472 | 160 | 80 | 121.4 | 187.5 | 7.1 |
| 125 | 481 | 165 | 83 | 147.4 | 214.5 | 8.7 |
| 150 | 487 | 165 | 86 | 173.4 | 241.5 | 10.4 |
| 200 | 496 | 170 | 92 | 225.5 | 294.5 | 14.5 |
| 250 | 517 | 175 | 100 | 276.8 | 351 | 24.3 |
| 300 | 532 | 180 | 105 | 328.8 | 408.2 | 30.2 |
| 350 | – | 160 | 110 | 381.9 | 462 | 48.9 |
| 400 | – | 165 | 110 | 432.9 | 514 | 58 |
| 450 | – | 170 | 120 | 484 | 575..4 | 68.5 |
| 500 | – | 175 | 120 | 536 | 627 | 87.5 |
| 600 | – | 185 | 120 | 639.1 | 736.3 | 114.8 |
| 700 | 691 | 220 | 140 | 742 | 861 | 183 |
| 800 | 701 | 230 | 140 | 846 | 972 | 226 |
| 900 | 711 | 240 | 140 | 949 | 1080 | 274 |
| 1000 | 721 | 250 | 140 | 1052 | 1189 | 325 |
| 1100 | 851 | 260 | 200 | 1155 | 1298 | 500 |
| 1200 | 785 | 270 | 162 | 1259 | 1411 | 470 |
