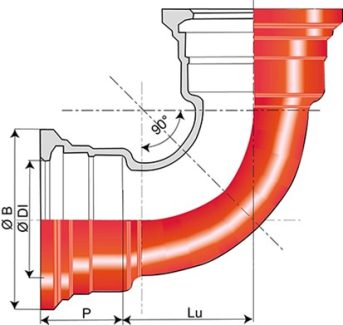

| Angle degree |
DN mm |
Lu mm |
P mm |
Ø DI mm |
Ø B mm |
|---|---|---|---|---|---|
| 90° | 80 | 91.5 | 85 | 101 | 167.5 |
| 90° | 100 | 105 | 88 | 121 | 187.5 |
| 90° | 125 | 133.5 | 91 | 147 | 214.5 |
| 90° | 150 | 152.5 | 94 | 173 | 241 |
| 90° | 200 | 200 | 100 | 225 | 294 |
| 90° | 250 | 252 | 105 | 277 | 351 |
| 90° | 300 | 304 | 110 | 329 | 408 |
| 90° | 350 | 390 | 110 | 381.4 | 464.3 |
| 90° | 400 | 436 | 112 | 432.4 | 515.3 |
| 90° | 450 | 482 | 115.5 | 483.5 | 573 |
| 90° | 500 | 525 | 117.5 | 535.5 | 628 |
| 90° | 600 | 624 | 132.5 | 638.6 | 737 |
| 90° | 700 | 670 | 150 | 742.2 | 861 |
| 90° | 800 | 735 | 160 | 846.3 | 972 |
| 90° | 900 | 880 | 175 | 949.4 | 1080 |
| 90° | 1000 | 1000 | 185 | 1052.5 | 1189 |
