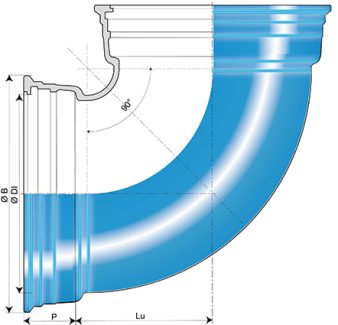

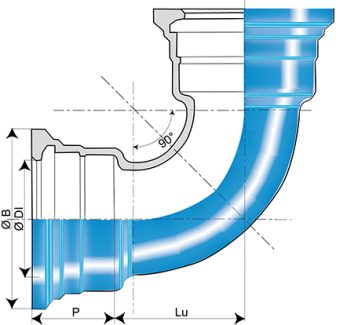

| Angle degree |
DN mm |
Lu mm |
P mm |
Ø DI mm |
Ø B mm |
Mass kg |
|---|---|---|---|---|---|---|
| 90° | 60 | 75 | 82 | 80.2 | 143.5 | 6.2 |
| 90° | 80 | 91.5 | 85 | 101.4 | 167.5 | 7.6 |
| 90° | 100 | 105 | 88 | 121.4 | 187.5 | 10 |
| 90° | 125 | 133.5 | 91 | 147.4 | 214.5 | 13.9 |
| 90° | 150 | 152.5 | 94 | 173.4 | 241 | 18.1 |
| 90° | 200 | 200 | 100 | 225.5 | 294 | 29.2 |
| 90° | 250 | 252 | 105 | 277.3 | 351 | 49.6 |
| 90° | 300 | 304 | 110 | 329.3 | 408.3 | 72.7 |
| 90° | 350 | 365 | 110 | 381.9 | 464.3 | 75.2 |
| 90° | 400 | 409 | 112 | 432.9 | 515.3 | 97.7 |
| 90° | 450 | 482 | 115.5 | 483.5 | 573 | 144 |
| 90° | 500 | 495 | 117.5 | 536 | 628 | 155.4 |
| 90° | 600 | 624 | 132.5 | 638.6 | 737 | 311 |
| 90° | 700 | 670 | 150 | 742.2 | 863 | 584 |
| 90° | 800 | 735 | 160 | 846.3 | 974 | 696 |
| 90° | 900 | 880 | 175 | 949.4 | 1082 | 800 |
| 90° | 1000 | 1000 | 185 | 1052.5 | 1191 | 1400 |
| 90° | 1200 | 1200 | 195 | 1255 | 1412.5 | 2328 |
