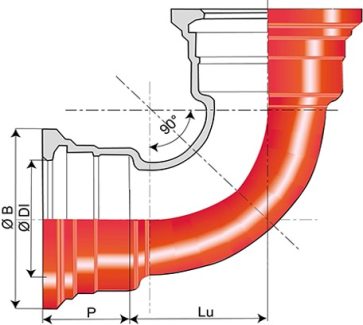

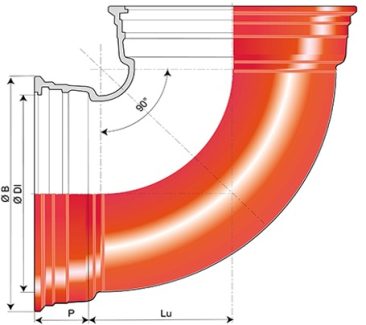

| Angle degree |
DN mm |
Lu mm |
P mm |
Ø DI mm |
Ø B mm |
Mass kg |
|---|---|---|---|---|---|---|
| 90° | 80 | 91.5 | 85.0 | 101.0 | 167.5 | 7.9 |
| 90° | 100 | 105.0 | 88.0 | 121.0 | 187.5 | 10.4 |
| 90° | 125 | 133.5 | 91.0 | 147.0 | 214.5 | 13.9 |
| 90° | 150 | 152.5 | 94.0 | 173.0 | 241.0 | 18.7 |
| 90° | 200 | 200.0 | 100.0 | 225.0 | 294.0 | 30.0 |
| 90° | 250 | 252.0 | 105.0 | 277.0 | 351.0 | 50.6 |
| 90° | 300 | 304.0 | 110.0 | 329.0 | 408.0 | 74.2 |
| 90° | 350 | 390.0 | 110.0 | 381.4 | 464.3 | 115.0 |
| 90° | 400 | 436.0 | 112.0 | 432.4 | 515.3 | 141.0 |
| 90° | 450 | 482.0 | 115.5 | 483.5 | 573.0 | 144.0 |
| 90° | 500 | 525.0 | 117.5 | 535.5 | 628.0 | 215.0 |
| 90° | 600 | 624.0 | 132.5 | 638.6 | 737.0 | 311.0 |
| 90° | 700 | 670.0 | 150.0 | 742.2 | 861.0 | 443.0 |
| 90° | 800 | 735.0 | 160.0 | 846.3 | 972.0 | 696.0 |
| 90° | 900 | 880.0 | 175.0 | 949.4 | 1080.0 | 800.0 |
| 90° | 1000 | 1000.0 | 185.0 | 1052.5 | 1189.0 | 1461.0 |
