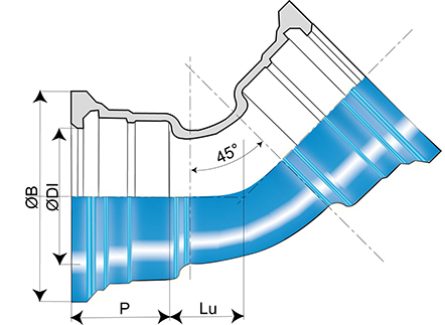

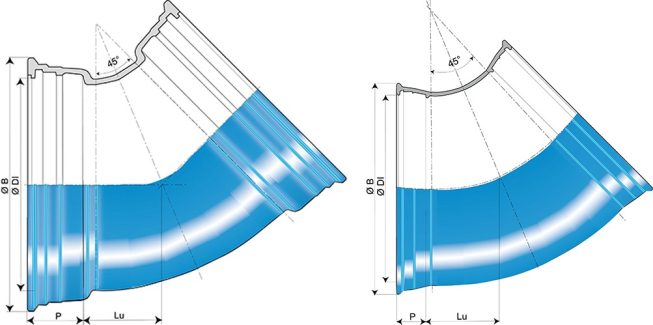

| Angle degree |
DN mm |
Lu mm |
P mm |
Ø DI mm |
Ø B mm |
Mass kg |
|---|---|---|---|---|---|---|
| 45° | 60 | 76 | 82 | 80.2 | 143.5 | 6.5 |
| 45° | 80 | 56.5 | 85 | 101.4 | 167.5 | 7 |
| 45° | 100 | 65 | 88 | 121.4 | 187.5 | 8.9 |
| 45° | 125 | 83.5 | 91 | 147.4 | 214.5 | 12.3 |
| 45° | 150 | 92.5 | 94 | 173.4 | 241 | 15.6 |
| 45° | 200 | 100 | 100 | 225.5 | 294 | 23.7 |
| 45° | 250 | 136 | 105 | 277.3 | 351 | 40.5 |
| 45° | 300 | 167.5 | 110 | 329.3 | 408.3 | 59 |
| 45° | 350 | 156.25 | 110 | 381.9 | 464.3 | 58.9 |
| 45° | 400 | 175 | 112 | 432.9 | 515.3 | 78.3 |
| 45° | 450 | 198.75 | 115.5 | 484 | 573 | 90.9 |
| 45° | 500 | 217.5 | 117.5 | 536 | 628 | 125.1 |
| 45° | 600 | 260 | 132.5 | 639.1 | 737 | 185 |
| 45° | 700 | 335.5 | 150 | 742.2 | 863 | 310.5 |
| 45° | 800 | 364.5 | 160 | 846.3 | 974 | 414.1 |
| 45° | 900 | 403.5 | 175 | 949.4 | 1082 | 545.1 |
| 45° | 1000 | 439.5 | 185 | 1052.5 | 1191 | 703.3 |
| 45° | 1100 | 540 | 190 | 1155 | 1300 | 980 |
| 45° | 1200 | 537.5 | 195 | 1263 | 1412.5 | 1015 |
| 45° | 1400 | 522 | 255 | 1467 | 1600 | 1555 |
| 45° | 1500 | 572 | 280 | 1570 | 1742 | 1815 |
| 45° | 1600 | 563 | 275 | 1673 | 1820 | 2089 |
| 45° | 1800 | 642 | 258 | 1881.7 | 2038.2 | 3126 |
| 45° | 2000 | 685 | 290 | 2089 | 2269 | 3702 |
