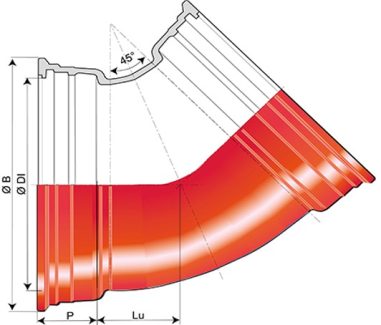

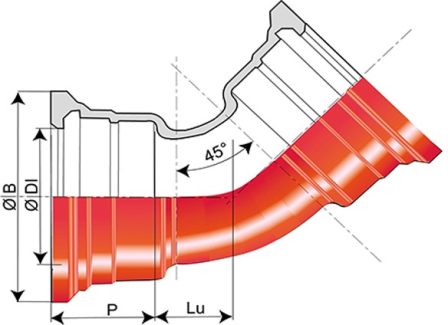

| Angle degree |
DN mm |
Lu mm |
P mm |
Ø DI mm |
Ø B mm |
Mass kg |
|---|---|---|---|---|---|---|
| 45° | 80 | 56.5 | 85.0 | 101.0 | 167.5 | 7.3 |
| 45° | 100 | 65.0 | 88.0 | 121.0 | 187.5 | 9.3 |
| 45° | 125 | 83.5 | 91.0 | 147.0 | 214.5 | 12.8 |
| 45° | 150 | 92.5 | 94.0 | 173.0 | 241.0 | 16.2 |
| 45° | 200 | 100.0 | 100.0 | 225.0 | 294.0 | 24.5 |
| 45° | 250 | 136.0 | 105.0 | 277.0 | 351.0 | 41.5 |
| 45° | 300 | 167.5 | 110.0 | 329.0 | 408.0 | 60.5 |
| 45° | 350 | 168.0 | 110.0 | 381.4 | 464.3 | 75.2 |
| 45° | 400 | 189.0 | 112.0 | 432.4 | 515.3 | 88.5 |
| 45° | 450 | 216.0 | 115.5 | 483.5 | 573.0 | 118.3 |
| 45° | 500 | 220.0 | 117.5 | 535.5 | 628.0 | 146.0 |
| 45° | 600 | 283.0 | 132.5 | 638.6 | 737.0 | 208.4 |
| 45° | 700 | 335.5 | 150.0 | 742.2 | 861.0 | 319.0 |
| 45° | 800 | 364.5 | 160.0 | 846.3 | 972.0 | 414.1 |
| 45° | 900 | 403.5 | 175.0 | 949.4 | 1080.0 | 545.1 |
| 45° | 1000 | 439.5 | 185.0 | 1052.5 | 1189.0 | 703.3 |
