Ductile Iron Bend 45 Flanged

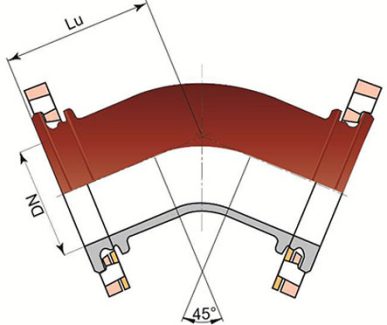

Flanged 45° Bend with rotatable flanges DN80-600

image site
Angle
degree		 DN
mm		 Lu
mm		 Mass PN10
kg		 Mass PN16
kg
45° 80 130 10 10
45° 200 180 31 31
45° 250 245 47.9 47.9
45° 300 275 67.5 66.1
45° 400 337 124 133
45° 450 370 158 171
45° 500 400 197 223
45° 600 463 289 339
