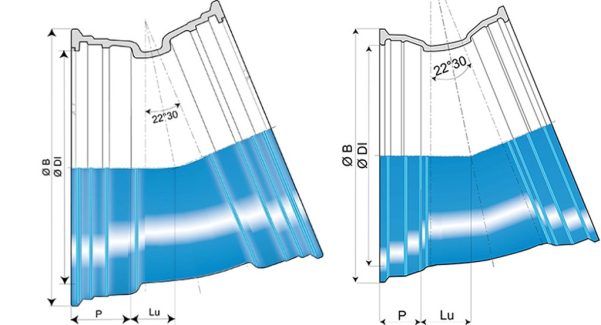

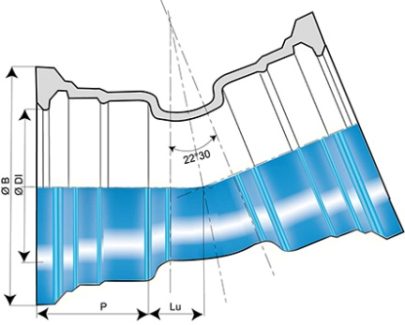

| Angle degree |
DN mm |
Lu mm |
P mm |
Ø DI mm |
Ø B mm |
Mass kg |
|---|---|---|---|---|---|---|
| 22°30 | 60 | 30 | 82 | 80.2 | 143.5 | 4.9 |
| 22°30 | 80 | 32 | 85 | 101.4 | 167.5 | 6.2 |
| 22°30 | 100 | 35 | 88 | 121.4 | 187.5 | 7.8 |
| 22°30 | 125 | 38 | 91 | 147.4 | 214.5 | 9.9 |
| 22°30 | 150 | 42 | 94 | 173.4 | 241 | 12.2 |
| 22°30 | 200 | 51 | 100 | 225.5 | 294 | 18.9 |
| 22°30 | 250 | 70 | 105 | 277.3 | 351 | 32.2 |
| 22°30 | 300 | 70 | 110 | 329.3 | 408.3 | 42.2 |
| 22°30 | 350 | 78 | 110 | 381.9 | 464.3 | 43.8 |
| 22°30 | 400 | 92 | 112 | 432.9 | 515.3 | 59.2 |
| 22°30 | 450 | 101 | 115.5 | 484 | 573 | 71.1 |
| 22°30 | 500 | 110 | 117.5 | 536 | 628 | 96.3 |
| 22°30 | 600 | 128 | 132.5 | 639.1 | 737 | 138.5 |
| 22°30 | 700 | 157.5 | 150 | 742.2 | 863 | 230.6 |
| 22°30 | 800 | 170.5 | 160 | 846.3 | 974 | 303 |
| 22°30 | 900 | 197.5 | 175 | 949.4 | 1082 | 405.6 |
| 22°30 | 1000 | 217.5 | 185 | 1052.5 | 1191 | 507 |
| 22°30 | 1100 | 275 | 190 | 1155 | 1300 | 650 |
| 22°30 | 1200 | 258.5 | 195 | 1263 | 1412.5 | 644 |
| 22°30 | 1400 | 264 | 255 | 1467 | 1600 | 1107 |
| 22°30 | 1500 | 314 | 280 | 1570 | 1742 | 1367 |
| 22°30 | 1600 | 284 | 275 | 1673 | 1820 | 1479 |
| 22°30 | 1800 | 337 | 258 | 1881.7 | 2038.2 | 2070 |
| 22°30 | 2000 | 355 | 290 | 2089 | 2269 | 2668 |
