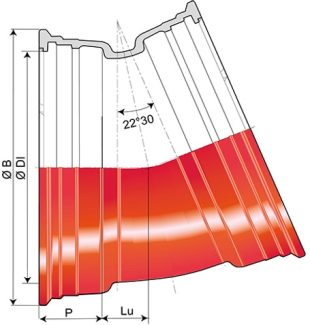

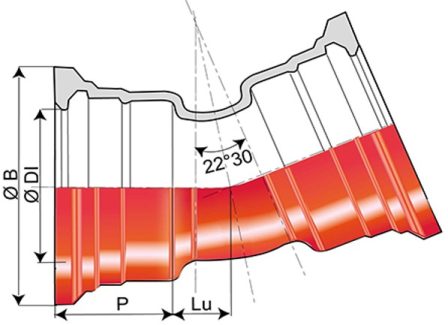

| Angle degree |
DN mm |
Lu mm |
P mm |
Ø DI mm |
Ø B mm |
Mass kg |
|---|---|---|---|---|---|---|
| 22°30 | 80 | 32.0 | 85.0 | 101.0 | 167.5 | 6.5 |
| 22°30 | 100 | 35.0 | 88.0 | 121.0 | 187.5 | 8.2 |
| 22°30 | 125 | 38.0 | 91.0 | 147.0 | 214.5 | 10.4 |
| 22°30 | 150 | 42.0 | 94.0 | 173.0 | 241.0 | 12.8 |
| 22°30 | 200 | 51.0 | 100.0 | 225.0 | 294.0 | 19.7 |
| 22°30 | 250 | 70.0 | 105.0 | 277.0 | 351.0 | 33.2 |
| 22°30 | 300 | 70.0 | 110.0 | 329.0 | 408.0 | 43.7 |
| 22°30 | 350 | 78.0 | 110.0 | 381.4 | 464.3 | 53.2 |
| 22°30 | 400 | 92.0 | 112.0 | 432.4 | 515.3 | 68.7 |
| 22°30 | 450 | 100.0 | 115.5 | 483.5 | 573.0 | 88.1 |
| 22°30 | 500 | 110.0 | 117.5 | 535.5 | 628.0 | 108.0 |
| 22°30 | 600 | 140.0 | 132.5 | 638.6 | 737.0 | 143.9 |
| 22°30 | 700 | 157.5 | 150.0 | 742.2 | 861.0 | 239.0 |
| 22°30 | 800 | 170.5 | 160.0 | 846.3 | 972.0 | 303.0 |
| 22°30 | 900 | 197.5 | 175.0 | 949.4 | 1080.0 | 405.6 |
| 22°30 | 1000 | 217.5 | 185.0 | 1052.5 | 1189.0 | 507.4 |
