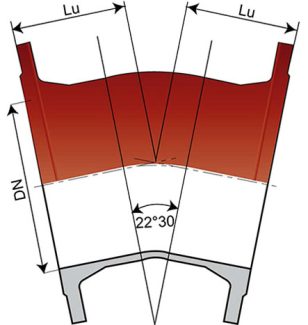

| Angle degree |
DN mm |
Lu mm |
Mass PN10 kg |
Mass PN16 kg |
Mass PN25 kg |
Mass PN40 kg |
|---|---|---|---|---|---|---|
| 22°30 | 80 | 100 | 11 | 11 | 11 | 11 |
| 22°30 | 100 | 110 | 11.6 | 11.6 | 18 | 18 |
| 22°30 | 150 | 109 | 17.8 | 17.8 | 21.5 | 21.5 |
| 22°30 | 200 | 138 | 41 | 27.5 | 30 | – |
| 22°30 | 250 | 190 | – | 43.5 | – | – |
| 22°30 | 300 | 210 | – | 54.4 | 78.4 | – |
| 22°30 | 350 | 210 | – | 83 | 91.5 | – |
| 22°30 | 400 | 239 | – | 107 | 129.6 | – |
| 22°30 | 450 | 349 | – | 135 | – | – |
| 22°30 | 500 | 375 | 210 | 176 | – | – |
| 22°30 | 600 | 426 | 219 | 267 | – | – |
| 22°30 | 700 | 300 | 261 | 258 | – | – |
| 22°30 | 800 | 335 | 340 | 336 | – | – |
| 22°30 | 900 | 375 | 442 | 437 | – | – |
| 22°30 | 1000 | 410 | 587 | – | – | – |
| 22°30 | 1200 | 467.5 | 905 | 1018 | – | – |
| 22°30 | 1400 | 524 | 1220 | 1324 | – | – |
| 22°30 | 1500 | 524 | – | 1501 | – | – |
| 22°30 | 1600 | 564 | 1668 | – | – | – |
| 22°30 | 1800 | 600 | – | – | – | – |
| 22°30 | 2000 | 650 | – | – | – | – |
