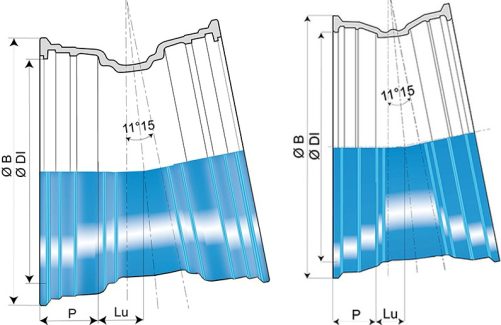

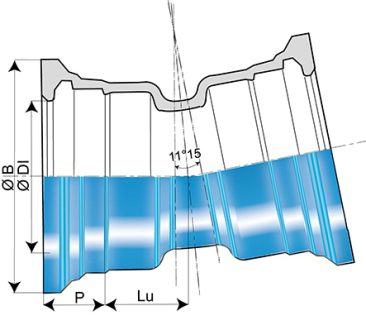

| Angle degree |
DN mm |
Lu mm |
P mm |
Ø DI mm |
Ø B mm |
Mass kg |
|---|---|---|---|---|---|---|
| 11°15 | 60 | 35 | 82 | 80.2 | 143.5 | 5.1 |
| 11°15 | 80 | 40 | 85 | 101.4 | 167.5 | 6.5 |
| 11°15 | 100 | 40 | 88 | 121.4 | 187.5 | 7.9 |
| 11°15 | 125 | 45 | 91 | 147.4 | 214.5 | 10.3 |
| 11°15 | 150 | 46 | 94 | 173.4 | 241 | 12.6 |
| 11°15 | 200 | 52 | 100 | 225.5 | 294 | 19.2 |
| 11°15 | 250 | 55 | 105 | 277.3 | 351 | 30.5 |
| 11°15 | 300 | 50 | 110 | 329.3 | 408.3 | 39.7 |
| 11°15 | 350 | 50 | 110 | 381.9 | 464.3 | 40.6 |
| 11°15 | 400 | 49 | 112 | 432.9 | 515.3 | 50.7 |
| 11°15 | 450 | 67 | 115.5 | 483.5 | 573 | 79.6 |
| 11°15 | 500 | 60 | 117.5 | 536 | 628 | 74.7 |
| 11°15 | 600 | 70 | 132.5 | 639.1 | 737 | 106.3 |
| 11°15 | 700 | 87 | 150 | 742.2 | 863 | 197 |
| 11°15 | 800 | 90.5 | 160 | 846.3 | 974 | 253 |
| 11°15 | 900 | 102.5 | 175 | 949.4 | 1082 | 325.6 |
| 11°15 | 1000 | 117.5 | 185 | 1052.5 | 1191 | 414.4 |
| 11°15 | 1100 | 140 | 190 | 1155 | 1300 | 490 |
| 11°15 | 1200 | 137.5 | 195 | 1263 | 1412.5 | 478 |
| 11°15 | 1400 | 143 | 255 | 1467 | 1600 | 884 |
| 11°15 | 1500 | 193 | 280 | 1570 | 1742 | 1143 |
| 11°15 | 1600 | 153 | 275 | 1673 | 1820 | 1173 |
| 11°15 | 1800 | 200 | 258 | 1881.7 | 2038.2 | 1542 |
| 11°15 | 2000 | 200 | 290 | 2089 | 2269 | 2151 |
