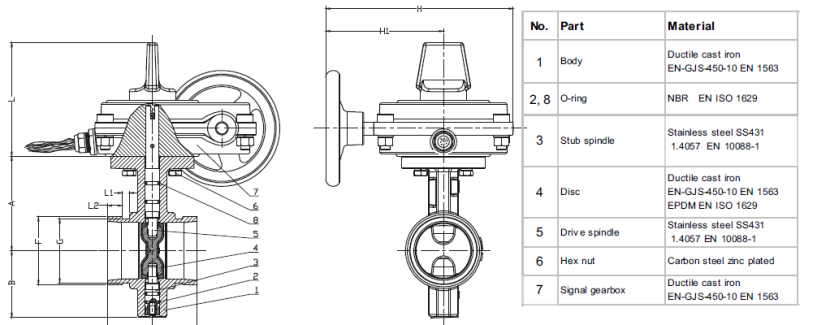

Butterfly valve

butterfly_valve_featured

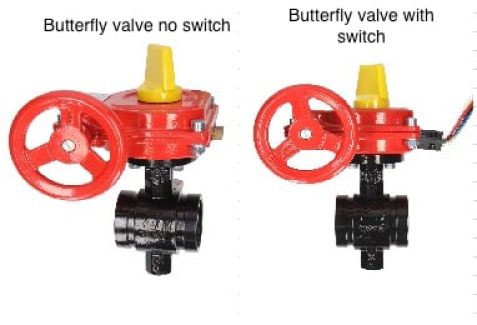

NO SWITCH
CE FM DN PN
PSI		 Dimensions
mm		 Weight
kg
inch mm A B C F G L L1 L2 H1 H
v v 2″ 50 300 89 65 81 60.3 57.15 122.5 7.93 15.88 127 202.2 7.98
v v – 65 300 102 71 97 76.1 72.26 122.5 7.93 15.88 127 202.2 8.6
v v 2,5″ – 300 102 71 97 73 69.09 122.5 7.93 15.88 127 202.2 8.6
v v 3″ 80 300 109 81 97 88.9 84.94 122.5 7.93 15.88 127 202.2 9
v v 4″ 100 300 128 95 116 114.3 110.08 122.5 9.53 15.88 127 202.2 10.7
v v – 125 300 141 111 148 139.7 135.48 122.5 9.53 15.88 127 202.2 14
v v 5″ – 300 141 111 148 141.3 137.03 122.5 9.53 15.88 127 202.2 14
v v – 150 300 153 133 148 168.3 163.96 122.5 9.53 15.88 127 202.2 18
v v 6″ – 300 153 133 148 165.1 160.90 122.5 9.53 15.88 127 202.2 18
v v 8″ 200 300 184 164 133 219.1 214.4 122.5 11.1 19.05 185 260.2 23
v v 10″ 250 300 216 196 159 273.1 268.28 122.5 12.7 19.05 185 260.2 34
v v 12″ 300 300 254 226 165 323.9 318.29 132 12.7 19.05 203 297.5 49
WITH SWITCH
CE FM DN PN
PSI		 Dimensions
mm		 Weight
kg
inch mm A B C F G L L1 L2 H1 H
v v 2″ 50 300 89 65 81 60.3 57.15 122.5 7.93 15.88 127 202.2 7.98
v v – 65 300 102 71 97 76.1 72.26 122.5 7.93 15.88 127 202.2 8.6
v v 2,5″ – 300 102 71 97 73 69.09 122.5 7.93 15.88 127 202.2 8.6
v v 3″ 80 300 109 81 97 88.9 84.94 122.5 7.93 15.88 127 202.2 9
v v 4″ 100 300 128 95 116 114.3 110.08 122.5 9.53 15.88 127 202.2 10.7
v v – 125 300 141 111 148 139.7 135.48 122.5 9.53 15.88 127 202.2 14
v v 5″ – 300 141 111 148 141.3 137.03 122.5 9.53 15.88 127 202.2 14
v v – 150 300 153 133 148 168.3 163.96 122.5 9.53 15.88 127 202.2 18
v v 6″ – 300 153 133 148 165.1 160.90 122.5 9.53 15.88 127 202.2 18
v v 8″ 200 300 184 164 133 219.1 214.4 122.5 11.1 19.05 185 260.2 23
v v 10″ 250 300 216 196 159 273.1 268.28 122.5 12.7 19.05 185 260.2 34
v v 12″ 300 300 254 226 165 323.9 318.29 132 12.7 19.05 203 297.5 49
