Butterfly Valve WAFER

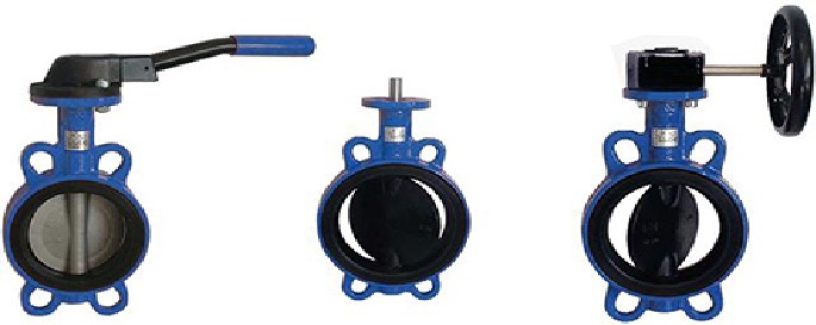

Picture1-15
Concentric Butterfly Valves type WAFER – DI disc + black epoxy
DN valve (mm) DN (inch) Mass (kg) Description (Version)
40 1 1/2″ 2.1 Hand lever type MN
40 1 1/2″ 2.9 Gearbox
50 2″ 2.9 Hand lever type MN
50 2″ 3.7 Gearbox
65 2 1/2″ 3.0 Hand lever type MN
65 2 1/2″ 3.8 Gearbox
80 3″ 3.6 Hand lever type MN
80 3″ 4.3 Gearbox
100 4″ 4.4 Hand lever type MN
100 4″ 5.2 Gearbox
125 5″ 6.6 Hand lever type MN
125 5″ 7.5 Gearbox
150 6″ 7.6 Hand lever type MN
150 6″ 8.7 Gearbox
200 8″ 11.6 Hand lever type MN
200 8″ 13.6 Gearbox
250 10″ 22.2 Hand lever type MN
250 10″ 24.0 Gearbox
300 12″ 33.0 Gearbox
300 12″ 31.2 Hand lever type MN
350 14″ 39.0 Gearbox
400 16″ 64.6 Gearbox
450 18″ 99.2 Gearbox
500 20″ 132.0 Gearbox
600 24″ 205.0 Gearbox
700 28″ 331.8 Gearbox
800 32″ 423.6 Gearbox
900 36″ 557.0 Gearbox
1000 40″ 659.0 Gearbox
1100 44″ 786.0 Gearbox
1200 48″ 1257.6 Gearbox
Concentric Butterfly Valves type WAFER Stainless steel disc CF8M
DN valve (mm) DN (inch) Mass (kg) Description (Version)
40 1 1/2″ 2.1 Hand lever type MN
40 1 1/2″ 2.9 Gearbox
50 2″ 2.9 Hand lever type MN
50 2″ 3.7 Gearbox
65 2 1/2″ 3.0 Hand lever type MN
65 2 1/2″ 3.8 Gearbox
80 3″ 3.6 Hand lever type MN
80 3″ 4.3 Gearbox
100 4″ 4.4 Hand lever type MN
100 4″ 5.2 Gearbox
125 5″ 6.6 Hand lever type MN
125 5″ 7.5 Gearbox
150 6″ 7.6 Hand lever type MN
150 6″ 8.7 Gearbox
200 8″ 11.6 Hand lever type MN
200 8″ 13.6 Gearbox
250 10″ 22.2 Hand lever type MN
250 10″ 24.0 Gearbox
300 12″ 31.2 Hand lever type MN
300 12″ 33.0 Gearbox
350 14″ 39.0 Gearbox
400 16″ 64.6 Gearbox
450 18″ 99.2 Gearbox
500 20″ 132.0 Gearbox
600 24″ 205.0 Gearbox
700 28″ 331.8 Gearbox
800 32″ 423.6 Gearbox
900 36″ 557.0 Gearbox
1000 40″ 659.0 Gearbox
1100 44″ 786.0 Gearbox
1200 48″ 1257.6 Gearbox
