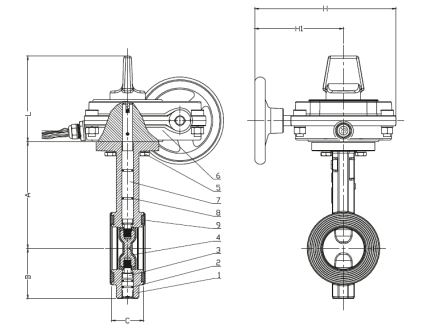

| CE | FM | DN | PN PSI |
A mm |
B mm |
C mm |
L mm |
H1 mm |
H mm |
Weight kg |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | ||||||||||
| v | v | 2″ | 50 | 300 | 140.5 | 65 | 43 | 122.5 | 127 | 202.2 | 8.5 |
| v | v | 2,5″ | 65 | 300 | 153 | 71 | 46 | 122.5 | 127 | 202.2 | 9 |
| v | v | 3″ | 80 | 300 | 157.5 | 81 | 46 | 122.5 | 127 | 202.2 | 9.5 |
| v | v | 4″ | 100 | 300 | 176 | 95 | 52 | 122.5 | 127 | 202.2 | 10.9 |
| v | v | 5″ | 125 | 300 | 191 | 111 | 56 | 122.5 | 127 | 202.2 | 12.9 |
| v | v | 6″ | 150 | 300 | 202.5 | 133 | 56 | 122.5 | 127 | 202.2 | 16.3 |
| v | v | 8″ | 200 | 300 | 243.5 | 164 | 60 | 122.5 | 185 | 260.2 | 21.7 |
| v | v | 10″ | 250 | 300 | 273 | 196 | 68 | 122.5 | 185 | 260.2 | 30.8 |
| v | v | 12″ | 300 | 300 | 311 | 226 | 78 | 132 | 202.5 | 297.5 | 44.6 |
