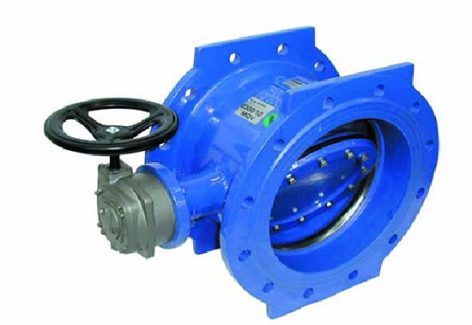

Flanged Butterfly Valve (flange-flange) with joint in the automatic butterfly (JPA) with double eccentricity and long spacing between the flanges. Ductile iron body and butterfly covered with blue epoxy powder thickness 250 microns mini average according prescriptions of EN 14901 (PECB). Range from DN150 to DN2000mm for pressures of PFA10 to 25 bar.

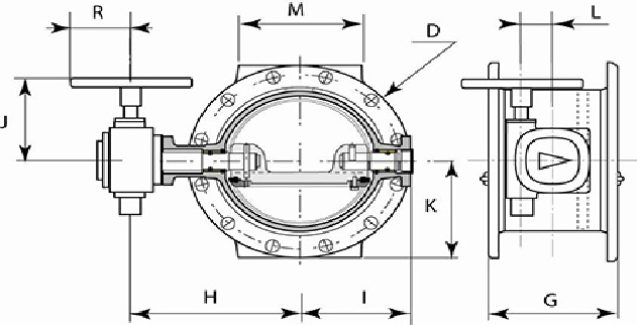

| DN(mm) | G(mm) | H(mm) | I(mm) | J(mm) | K(mm) | L(mm) | M(mm) | D(mm) | R(mm) | Mass clockwise(kg) | Mass anti clockwise (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 210 | 215 | 142.9 | 164 | 143 | 50 | 150 | 285 | 100 | 35 | 36 |
| 200 | 230 | 240 | 171.9 | 164 | 170 | 50 | 180 | 340 | 100 | 46 | 49 |
| 250 | 250 | 292 | 215.3 | 164 | 200 | 50 | 230 | 400 | 100 | 67 | – |
| 300 | 270 | 321 | 239.3 | 201 | 228 | 63 | 250 | 455 | 125 | 88 | 101 |
| 350 | 290 | 340 | 280.4 | 201 | 260 | 63 | 260 | 520 | 125 | 132 | 150 |
| 400 | 310 | 407 | 322.4 | 206 | 290 | 80 | 310 | 580 | 125 | 170 | 216 |
| 450 | 330 | 427 | 342.4 | 206 | 320 | 80 | 340 | 640 | 125 | 207 | 252 |
| 500 | 350 | 470 | 367.4 | 248 | 358 | 100 | 320 | 715 | 175 | 265 | 307 |
| 600 | 390 | 550 | 451.5 | 334 | 420 | 100 | 300 | 840 | 175 | 414 | 476 |
| 700 | 430 | 627 | 521.5 | 340 | 455 | 125 | 440 | 910 | 175 | 543 | 675 |
| 800 | 470 | 713 | 602 | 415 | 513 | 160 | 480 | 1025 | 175 | 986 | – |
| 900 | 510 | 764 | 653 | 415 | 563 | 160 | 570 | 1125 | 175 | 1021 | – |
| 1000 | 550 | 815 | 748 | 545 | 628 | 200 | 620 | 1255 | 175 | 1432 | – |
| 1200 | 630 | 950 | 852 | 622 | 743 | 250 | 750 | 1485 | 250 | 2357 | – |
| 1400 | 710 | 1125 | 973 | 755 | 843 | 315 | 850 | 1685 | 250 | 3500 | – |
| 1500 | 750 | 1156 | 1077 | 755 | 933 | 315 | 900 | 1865 | 250 | 4281 | – |
| 1600 | 790 | 1229 | 1119 | 755 | 965 | 315 | 950 | 1930 | 250 | 4916 | – |
| 1800 | 870 | 1431 | 1272 | 848 | 1065 | 400 | 1000 | 2130 | 400 | 6974 | – |
| 2000 | 950 | 1526 | 1367 | 848 | 1173 | 400 | 1050 | 2345 | 400 | 8500 | – |
