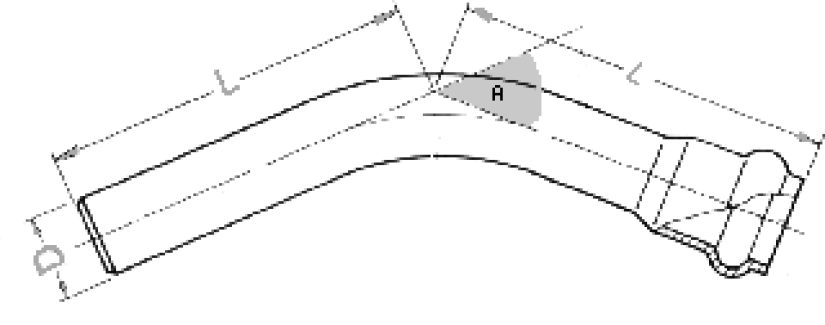

| Diameter | Radius | 11o | 22o | 30o | 45o | 60o | 90o | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L (cm) | Weight (kg) | L (cm) | Weight (kg) | L (cm) | Weight (kg) | L (cm) | Weight (kg) | L (cm) | Weight (kg) | L (cm) | Weight (kg) | ||
| 50 | 0.19 | 0.22 | 0.37 | 0.24 | 0.4 | 0.26 | 0.44 | 0.29 | 0.49 | 0.31 | 0.53 | 0.34 | 0.57 |
| 63 | 0.2 | 0.24 | 0.65 | 0.26 | 0.71 | 0.29 | 0.77 | 0.31 | 0.84 | 0.34 | 0.9 | 0.36 | 0.97 |
| 75 | 0.24 | 0.29 | 1.08 | 0.3 | 1.13 | 0.32 | 1.19 | 0.35 | 1.31 | 0.39 | 1.44 | 0.44 | 1.62 |
| 90 | 0.29 | 0.32 | 1.72 | 0.35 | 1.88 | 0.36 | 1.96 | 0.38 | 2.06 | 0.44 | 2.35 | 0.49 | 2.61 |
| 110 | 0.33 | 0.34 | 2.73 | 0.36 | 2.93 | 0.39 | 3.12 | 0.42 | 3.35 | 0.49 | 3.9 | 0.54 | 4.29 |
| 125 | 0.37 | 0.36 | 3.76 | 0.38 | 3.96 | 0.42 | 4.31 | 0.45 | 4.66 | 0.53 | 5.41 | 0.6 | 6.16 |
| 140 | 0.42 | 0.39 | 5.02 | 0.41 | 5.33 | 0.44 | 5.64 | 0.49 | 6.27 | 0.56 | 7.21 | 0.66 | 8.46 |
| 160 | 0.48 | 0.43 | 7.35 | 0.45 | 7.76 | 0.48 | 8.17 | 0.53 | 8.99 | 0.58 | 9.8 | 0.73 | 12.26 |
| 200 | 0.64 | 0.53 | 14.08 | 0.56 | 14.72 | 0.58 | 15.36 | 0.67 | 17.54 | 0.73 | 19.2 | 0.9 | 23.42 |
| 225 | 0.64 | 0.56 | 18.52 | 0.58 | 19.32 | 0.66 | 21.74 | 0.73 | 24.15 | 0.81 | 26.57 | 0.98 | 32.2 |
| 250 | 0.64 | 0.56 | 23.88 | 0.61 | 25.87 | 0.68 | 28.86 | 0.76 | 31.84 | 0.83 | 34.83 | 0.96 | 39.8 |
| 280 | 0.7 | 0.65 | 33.62 | 0.7 | 36.11 | 0.75 | 38.6 | 0.8 | 41.09 | 1.02 | 52.29 | 1.12 | 57.27 |
| 315 | 0.7 | 0.65 | 44.1 | 0.73 | 48.83 | 0.78 | 51.98 | 0.83 | 55.13 | 1.05 | 69.3 | 1.18 | 77.18 |
