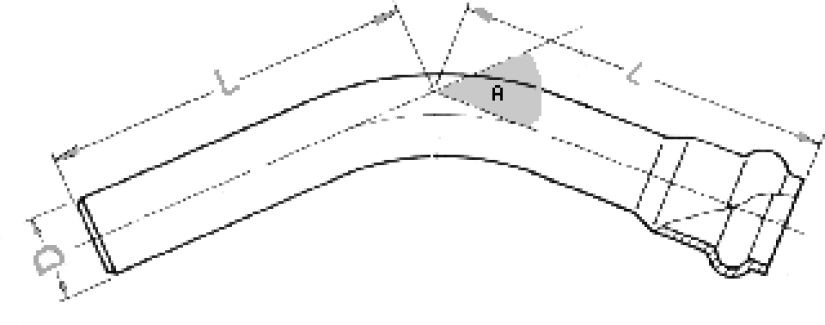

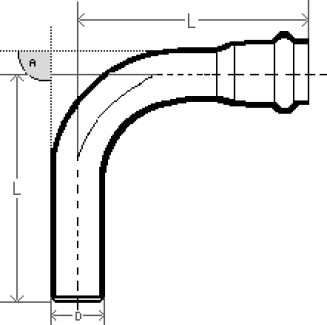

Bend PVC 10bar

Diameter	Radius	11o		22o		30o		45o		60o		90o
		L (cm)	Weight (kg)	L (cm)	Weight (kg)	L (cm)	Weight (kg)	L (cm)	Weight (kg)	L (cm)	Weight (kg)	L (cm)	Weight (kg)
50	0.19	0.22	0.25	0.24	0.28	0.27	0.3	0.29	0.33	0.32	0.36	0.34	0.39
63	0.2	0.24	0.43	0.27	0.47	0.29	0.51	0.32	0.55	0.34	0.6	0.37	0.64
75	0.24	0.29	0.73	0.3	0.77	0.32	0.81	0.35	0.89	0.39	0.98	0.44	1.1
90	0.29	0.32	1.16	0.35	1.26	0.36	1.31	0.38	1.38	0.44	1.58	0.49	1.75
110	0.33	0.34	1.83	0.36	1.96	0.39	2.09	0.42	2.24	0.49	2.61	0.54	2.87
125	0.37	0.36	2.51	0.38	2.64	0.41	2.87	0.45	3.11	0.52	3.61	0.6	4.11
140	0.42	0.39	3.34	0.41	3.55	0.44	3.76	0.49	4.18	0.56	4.81	0.66	5.64
160	0.48	0.44	4.92	0.46	5.2	0.49	5.47	0.54	6.02	0.59	6.56	0.74	8.21
200	0.64	0.54	9.36	0.56	9.79	0.59	10.21	0.67	11.66	0.74	12.77	0.9	15.57
225	0.64	0.56	12.42	0.59	12.96	0.66	14.58	0.74	16.2	0.81	17.82	0.99	21.6
250	0.64	0.58	15.84	0.63	17.16	0.7	19.14	0.78	21.12	0.85	23.1	0.98	26.4
280	0.7	0.65	22.41	0.7	24.07	0.75	25.73	0.8	27.39	1.03	34.86	1.13	38.18
315	0.7	0.68	29.26	0.75	32.4	0.8	34.49	0.85	36.58	1.08	45.98	1.2	51.21
355	0.7	0.72	39.75	0.8	43.73	0.85	46.38	0.9	49.03	1.12	60.95	1.27	68.9
