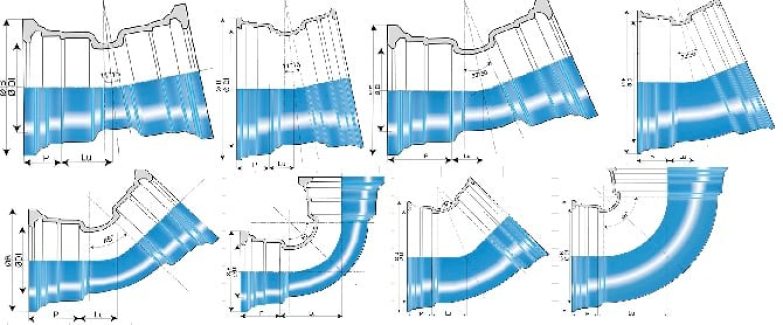

| Angle | DN mm |
Lu mm |
P mm |
ØDI mm |
ØB mm |
Mass kg |
|---|---|---|---|---|---|---|
| 11°15 | 100 | 40 | 88 | 121.4 | 187.5 | 7,900 |
| 150 | 46 | 94 | 173.4 | 241 | 12,600 | |
| 200 | 52 | 100 | 225.5 | 294 | 19,200 | |
| 250 | 55 | 105 | 277.3 | 351 | 30,500 | |
| 300 | 50 | 110 | 329.3 | 408.3 | 39,700 | |
| 400 | 58 | 112 | 432.4 | 515.3 | 61,500 | |
| 22°30 | 100 | 35 | 88 | 121.4 | 187.5 | 7,800 |
| 150 | 42 | 94 | 173.4 | 241 | 12,200 | |
| 200 | 51 | 100 | 225.5 | 294 | 18,900 | |
| 250 | 70 | 105 | 277.3 | 351 | 32,200 | |
| 300 | 70 | 110 | 329.3 | 408.3 | 42,200 | |
| 400 | 92 | 112 | 432.4 | 515.3 | 68,700 | |
| 45° | 100 | 65 | 88 | 121.4 | 187.5 | 8,900 |
| 150 | 92.5 | 94 | 173.4 | 241 | 15,600 | |
| 200 | 100 | 100 | 225.5 | 294 | 23,700 | |
| 250 | 136 | 105 | 277.3 | 351 | 40,500 | |
| 300 | 167.5 | 110 | 329.3 | 408.3 | 59,000 | |
| 400 | 189 | 112 | 432.4 | 515.3 | 91,000 | |
| 90° | 100 | 105 | 88 | 121.4 | 187.5 | 10,000 |
| 150 | 152.5 | 94 | 173.4 | 241 | 18,100 | |
| 200 | 200 | 100 | 225.5 | 294 | 29,200 | |
| 250 | 252 | 105 | 277.3 | 351 | 49,600 | |
| 300 | 304 | 110 | 329.3 | 408.3 | 72,700 | |
| 400 | 436 | 112 | 432.4 | 515.3 | 141,000 |
