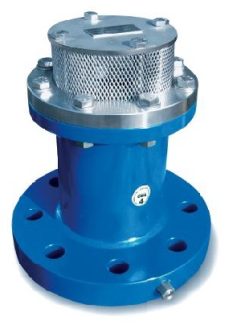

The three-function anti-water hammer vent with full flow PN 64 FBHP ensures pressure relief during operation, the return of large volumes of air when the pipes are emptied and controlled air release during the filling phase to prevent the risk of water hammer. Technical features and benefits
| CONNECTION inch/mm |
A(mm) | B(mm) | C(mm) | Weight(Kg) |
|---|---|---|---|---|
| Threaded 1″ | 165 | 240 | 180 | 4.2 |
| Threaded 2″ | 165 | 240 | 180 | 5 |
| Flanged 50 | 165 | 240 | 180 | 6 |
| Flanged 65 | 185 | 240 | 180 | 6 |
| Flanged 80 | 200 | 265 | 205 | 9.2 |
| Flanged 100 | 235 | 334 | 205 | 13 |
| Flanged 150 | 300 | 380 | 250 | 35 |
